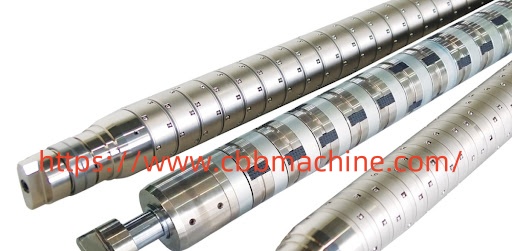

In web converting industries, the Differential Air Shaft plays a central role in applications requiring precise tension control and independent roll adjustment during high-speed winding and slitting operations.
Unlike traditional shafts that rely on fixed torque transmission, this component enables multiple cores of varying thickness or width to rotate independently while maintaining consistent tension. This feature is essential for production lines handling multiple narrow rolls on the same shaft, where material thickness inconsistencies would otherwise lead to uneven winding or core slipping.
The structure of this shaft incorporates specially designed friction elements or ball-lock mechanisms that automatically adjust to differences in torque requirements per core. As compressed air is introduced into the internal bladder, the friction rings engage and apply controlled torque to each core individually. This intelligent torque distribution ensures each roll winds with uniform density, avoiding issues like telescoping or slack edges.
Industries such as label printing, adhesive tape manufacturing, flexible packaging, and coated paper processing frequently benefit from this design. When dealing with sensitive materials or multilayer films, maintaining balanced tension across all outputs prevents damage and promotes product quality.
Efficiency is a core benefit of adopting this shaft technology. By eliminating the need to stop machinery for individual roll tension adjustments, operators achieve faster setup times and greater production throughput. This results in less material waste and improved consistency between finished rolls.
Maintenance is also simplified. Since friction rings or rubber air bladders are modular and replaceable, downtime for servicing is minimized. Many manufacturers opt for designs that allow external inflation without dismantling the shaft—saving both time and labor costs.
Moreover, the shaft is compatible with a wide range of core sizes, especially 3-inch and 6-inch internal diameters, offering additional flexibility to plants with mixed-format production. The adaptability of the unit supports changing demands in custom or short-run production, where switching between jobs quickly is vital.
Modern variants come with enhanced material choices such as aluminum or alloy steel, improving durability while keeping the shaft lightweight for easy handling. Anti-corrosive coatings and sealed ends protect internal parts from dust and moisture, extending the shaft's lifespan even under demanding shop floor conditions.
When integrated into fully automated systems, this technology enhances web handling by ensuring synchronized roll output, contributing to operational stability and product excellence. Its application reduces scrap and supports sustainable manufacturing practices.
