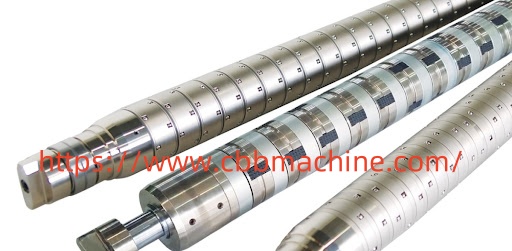

In high-speed roll processing lines, precision tension and consistent unwinding are made possible with the Differential Air Shaft , a device engineered to control torque across individual cores during winding.
This mechanical shaft solution is commonly employed in industries that convert film, foil, paper, or textile into rolled products. Its primary function is to compensate for gauge variation and core misalignment across multiple winding positions on the same shaft. Without such compensation, roll tightness can become uneven, leading to material deformation or line stoppage.
At the heart of its operation is an internal torque-transmission mechanism. The differential feature allows torque to be distributed separately to each core, ensuring equal tension regardless of diameter differences or core placement. This innovation not only improves roll quality but also reduces waste and increases machine uptime.
These shafts usually feature a modular design. The outer body is fitted with friction rings or sleeves that interact with the material cores. When compressed by air, the internal elements engage, transmitting torque selectively to each ring. This design enables independent slipping, which is critical for winding materials of inconsistent thickness.
Installation flexibility is another strong point. Many shafts are adaptable to different core sizes—especially 3-inch and 6-inch cores—and can be customized to fit various machine widths. Manufacturers often provide lightweight aluminum or high-strength steel options depending on the application needs.
Maintenance is typically minimal. Since the torque system operates internally and the shaft construction is sealed, wear and dust exposure are reduced. Most operators only need to inspect seals and replace worn friction rings periodically. This makes the differential shaft a long-lasting and cost-effective solution for demanding production environments.
Precision control also contributes to safety. Sudden tension changes or material tears are minimized, making operations smoother and less prone to mechanical failure. This is particularly valuable for operators handling delicate substrates like battery film, pharmaceutical foil, or specialty packaging.
From a performance perspective, the shaft supports high-speed lines without compromising on accuracy. It also simplifies downstream processes like slitting or lamination by delivering evenly wound rolls, which improves efficiency across the board.
With manufacturing standards evolving, many producers now turn to differential shaft systems to ensure greater consistency, particularly in multi-core winding applications. By upgrading to a system that enables individualized torque control, companies can future-proof their lines and improve output quality.
To learn more about technical specifications and application scenarios, please visit www.cbbmachine.com
