The Complete Guide to Slide Gate Plates: Everything You Need to Know

Introduction

In the modern steel industry, precision flow control is essential for producing high-quality steel efficiently and safely. Slide gate plates have revolutionized ladle metallurgy and continuous casting operations, replacing traditional stopper rod systems in most steel plants worldwide. These critical refractory components serve as the gatekeeper between molten steel and the casting process, directly impacting product quality, operational efficiency, and production costs.

The evolution from stopper rod systems to slide gate technology represents one of the most significant advances in steelmaking metallurgy. Today's slide gate systems provide unprecedented control over steel flow, enabling steel producers to achieve tighter tolerances, reduce inclusion content, and maximize casting yields. This comprehensive guide will walk you through everything you need to know about slide gate plates, from fundamental concepts to expert selection criteria, operational best practices, and manufacturer evaluation.

Whether you're a metallurgical engineer, plant manager, purchasing professional, or maintenance supervisor, this guide provides the essential knowledge needed to optimize your slide gate plate selection, operation, and procurement strategies.

1. What is a Slide Gate Plate? Understanding the Fundamentals

Definition and Core Function

A slide gate plate is a precision-engineered refractory component designed to control the flow of molten steel from a ladle to a tundish or casting mold in continuous casting operations. Unlike older stopper rod mechanisms that use vertical movement to plug a nozzle opening, slide gate systems employ three flat refractory plates arranged in a sandwich configuration to start, regulate, throttle, or completely stop the flow of liquid steel at temperatures exceeding 1,500°C.

The fundamental principle is elegantly simple yet remarkably effective: by sliding one plate horizontally relative to two fixed plates, the alignment of bore holes can be adjusted to control steel flow with precision impossible in earlier systems.

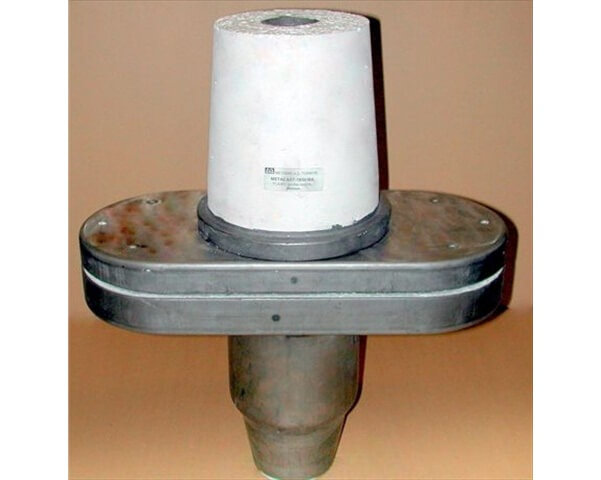

System Components and Configuration

A complete slide gate system consists of several critical components working in harmony:

Upper Plate (Fixed Position):

• Permanently attached to the ladle bottom refractory
• Bore aligned precisely with the ladle nozzle above
• Must withstand direct contact with molten steel throughout the heat
• Typically experiences the highest thermal load in the system

Middle Plate (Sliding Component):

• The movable element that slides horizontally within the gate mechanism
• Actuated by hydraulic or pneumatic cylinders for precise control
• Bore alignment with upper and lower plates determines flow rate
• Must maintain dimensional stability under extreme thermal cycling

Lower Plate (Fixed Position):

• Connected to the collector nozzle, ladle shroud, or submerged entry nozzle
• Provides the exit path for molten steel toward the tundish or mold
• Subject to both thermal stress and mechanical loads from the nozzle assembly

Plate Frame and Mechanism:

• Structural assembly holding plates in proper alignment
• Hydraulic or pneumatic actuation system for middle plate movement
• Spring-loaded clamping system maintaining consistent pressure
• Heat shields protecting mechanical components from radiant heat

[INSERT PHOTO: Exploded view diagram showing all three slide gate plates and assembly components]

How Slide Gate Systems Work

The operational principle of slide gate plates is straightforward but requires precision engineering:

Closed Position: The middle plate is positioned so its bore hole is completely offset from the upper and lower plate bores. Steel cannot flow through the misaligned openings, effectively sealing the ladle.

Partial Opening: By sliding the middle plate to partially align the bore holes, operators can throttle steel flow to any desired rate between zero and maximum. This provides infinite adjustability for precise casting speed control.

Full Open Position: When all three bore holes are perfectly aligned, steel flows at maximum rate determined by bore diameter, steel temperature, and metallostatic head pressure.

The system's mechanical advantage lies in its ability to make these adjustments smoothly and rapidly, responding instantly to casting requirements without the vertical movement complications of stopper rod systems.

Historical Context and Evolution

The slide gate plate system was developed in the 1970s as steel producers sought more reliable flow control methods. Traditional stopper rod systems suffered from several limitations:

• Vertical movement mechanism prone to misalignment and binding
• Rod oxidation causing surface irregularities and flow inconsistencies
• Difficulty achieving precise flow adjustments
• Higher maintenance requirements
• Greater steel exposure to atmosphere during operation

Slide gate technology addressed these limitations, leading to widespread adoption throughout the 1980s and 1990s. Today, slide gate systems are installed on virtually all modern continuous casting operations worldwide, representing the industry standard for ladle flow control.

Advantages Over Traditional Stopper Rod Systems

Modern slide gate systems provide numerous operational and metallurgical advantages:

Superior Flow Control and Precision:

• Infinitely variable flow adjustment from zero to maximum
• Immediate response to operator commands
• Consistent flow characteristics throughout the heat
• Ability to maintain precise casting speeds critical for quality
• Better control during ladle changeover and casting interruptions

Improved Steel Cleanliness:

• Minimal exposure of molten steel to atmosphere
• Reduced reoxidation and inclusion pickup
• Better protection against nitrogen absorption
• Enclosed flow path preserving steel chemistry
• Lower total oxygen content in final product

Enhanced Operational Reliability:

• Fewer mechanical failure modes than vertical stopper systems
• No complex vertical actuation mechanisms to maintain
• Reduced risk of rod binding or sticking
• More predictable service life
• Better performance across wide range of steel grades

Safety Benefits:

• Remote operation capability reduces operator exposure
• No overhead rod mechanism presenting falling hazards
• More controlled shutdown capability in emergency situations
• Reduced risk of uncontrolled steel release

Economic Advantages:

• Longer service life reduces refractory consumption
• Lower maintenance costs and shorter maintenance time
• Improved casting yield through better flow control
• Reduced steel loss from splashing and irregular flow
• Higher productivity through faster heat-to-heat turnaround

2. Raw Materials, Specifications, and Types of Slide Gate Plates

Understanding Refractory Raw Materials

The performance and service life of slide gate plates depend critically on the raw materials and manufacturing processes used in their production. Modern slide gate plates utilize advanced refractory materials specifically engineered to withstand the extreme conditions of molten steel contact: temperatures exceeding 1,500°C, aggressive chemical attack from slag and steel, severe thermal shock during operation, and mechanical erosion from flowing steel.

Alumina-Carbon (Al₂O₃-C) Plates

Alumina-carbon compositions represent the most widely used material system for slide gate plates, offering an excellent balance of performance, reliability, and cost-effectiveness for general steelmaking operations.

Detailed Composition:

• Primary component: 70-85% Aluminum Oxide (Al₂O₃), typically using tabular alumina or fused alumina aggregates
• Carbon source: 3-8% Graphite (C), providing thermal shock resistance and non-wetting characteristics
• Metal additives: 2-5% Aluminum, silicon, or aluminum-magnesium alloys acting as antioxidants
• Organic binders: Phenolic resins or pitch binding the matrix
• Additional components: Zircon flour, silicon carbide, or other performance enhancers

Technical Specifications:

• Bulk Density: 2.95-3.10 g/cm³
• Apparent Porosity: 6-9%
• Cold Crushing Strength: 80-120 MPa
• Modulus of Rupture: 25-40 MPa
• Thermal Expansion (1000°C): 0.6-0.8%
• Thermal Conductivity: 8-12 W/m·K
• Thermal Shock Resistance: >15 cycles (1100°C water quench test)
• Maximum Service Temperature: 1,650°C

Performance Characteristics:

• Good thermal shock resistance enabling rapid temperature changes
• Adequate erosion resistance for carbon and low-alloy steel grades
• Non-wetting properties preventing steel adherence to bore surfaces
• Cost-effective solution providing 8-15 heats service life in typical operations
• Moderate oxidation resistance requiring proper operational procedures

Applications: Carbon steel, low-alloy steel, and general production operations where cost-effectiveness is important. Ideal for steel plants producing commodity grades without extreme purity requirements.

Alumina-Zirconia-Carbon (Al₂O₃-ZrO₂-C) Plates

Alumina-zirconia-carbon compositions represent premium material technology, offering significantly enhanced performance for demanding applications and extended service life requirements.

Detailed Composition:

• Aluminum Oxide: 65-75% using high-purity tabular or white fused alumina
• Zirconia: 10-15% stabilized zirconia (typically magnesia-stabilized or yttria-stabilized)
• Carbon: 5-10% high-purity synthetic or natural graphite
• Metal additives: 3-5% advanced antioxidant systems
• Performance additives: Silicon carbide whiskers, carbon nanotubes, or other advanced reinforcements

Technical Specifications:

• Bulk Density: 3.15-3.30 g/cm³
• Apparent Porosity: 5-8%
• Cold Crushing Strength: 100-140 MPa
• Modulus of Rupture: 35-50 MPa
• Thermal Expansion (1000°C): 0.7-0.9%
• Thermal Conductivity: 9-14 W/m·K
• Thermal Shock Resistance: >20 cycles (1100°C water quench test)
• Maximum Service Temperature: 1,700°C

Performance Characteristics:

• Superior erosion resistance: 30-40% improvement over standard alumina-carbon
• Excellent thermal shock resistance from zirconia phase transformation toughening
• Enhanced corrosion resistance against aggressive steel chemistries
• Extended service life: typically 15-25 heats in demanding applications
• Better dimensional stability under thermal cycling
• Superior performance with high-alloy and specialty steel grades

Applications: High-grade steel production, stainless steel, tool steel, bearing steel, and any application where extended service life justifies premium pricing. Preferred choice for operations maximizing productivity and minimizing downtime.

Alumina-Spinel-Carbon (Al₂O₃-MgAl₂O₄-C) Plates

Alumina-spinel-carbon materials offer a versatile middle-ground option, providing enhanced performance characteristics at moderate premium over standard compositions.

Detailed Composition:

• Aluminum Oxide: 70-80% tabular or fused alumina
• Spinel: 8-12% Magnesium Aluminate Spinel (MgAl₂O₄), either pre-formed or in-situ formed
• Carbon: 5-8% graphite
• Additives: 3-5% metal antioxidants and binding agents

Technical Specifications:

• Bulk Density: 3.00-3.15 g/cm³
• Apparent Porosity: 6-9%
• Cold Crushing Strength: 90-130 MPa
• Modulus of Rupture: 30-45 MPa
• Thermal Shock Resistance: Excellent (>18 cycles)
• Maximum Service Temperature: 1,680°C

Performance Characteristics:

• Excellent slag resistance against both acidic and neutral slags
• Good thermal shock resistance from spinel's coefficient of thermal expansion matching
• Balanced performance across wide range of steel grades
• Moderate cost premium over standard alumina-carbon
• Service life: 12-18 heats in typical applications

Applications: Medium to high-grade steel production, operations handling multiple steel grades, and situations requiring versatility across varying casting conditions.

Magnesia-Carbon (MgO-C) Plates

Magnesia-carbon materials provide specialized performance for highly corrosive environments, particularly in stainless steel production.

Detailed Composition:

• Magnesia: 85-95% high-purity fused magnesia or electrofused magnesia
• Carbon: 5-10% high-purity graphite
• Additives: Antioxidants and metal powders preventing magnesia hydration

Technical Specifications:

• Bulk Density: 2.85-3.05 g/cm³
• Apparent Porosity: 6-10%
• Cold Crushing Strength: 70-100 MPa
• Maximum Service Temperature: 1,700°C
• Slag Resistance: Excellent against basic slags

Performance Characteristics:

• Outstanding resistance to basic slag attack
• Excellent performance in stainless steel and high-alloy applications
• Superior corrosion resistance in highly oxidizing environments
• Requires careful handling due to magnesia hydration sensitivity
• Service life: 10-20 heats in stainless steel operations

Applications: Stainless steel production, high-chromium alloys, and any operation with highly basic slag systems. Essential for AOD and VOD converter operations transitioning to continuous casting.

Manufacturing Methods and Quality Implications

The manufacturing process significantly impacts slide gate plate performance, with three primary methods employed:

Fired (Burned) Plates

Process: Plates are formed under pressure, then fired in kilns at temperatures between 1,000-1,400°C for 24-72 hours.

Advantages:

• Complete organic binder burnout
• Strong ceramic bonding
• Economical production process
• Stable dimensions after firing

Limitations:

• Some residual porosity from firing shrinkage
• Potential for micro-cracking during firing
• Lower carbon retention versus unfired plates

Best Applications: Cost-sensitive applications, standard carbon steel production

Unfired (Resin-Bonded) Plates

Process: Plates are formed under high pressure using organic resin binders, then cured at moderate temperatures (150-250°C) without high-temperature firing.

Advantages:

• Higher carbon content retention
• Denser structure with lower apparent porosity
• Better thermal conductivity
• Faster production cycle

Limitations:

• Requires complete drying before use
• Initial heat may show some organic burnout
• More sensitive to storage conditions

Best Applications: Standard operations seeking good performance at moderate cost

Isostatic Pressed Plates

Process: Raw materials are compacted using cold isostatic pressing (CIP) at pressures of 150-300 MPa from all directions, then fired or cured depending on composition.

Advantages:

• Superior density (lowest porosity)
• Exceptional uniformity throughout plate structure
• Maximum strength and erosion resistance
• Tightest dimensional tolerances
• Best overall performance characteristics

Limitations:

• Higher manufacturing cost (30-50% premium)
• Longer production cycle
• Limited number of manufacturers with CIP equipment

Best Applications: Demanding operations, high-alloy steels, maximum service life requirements, situations where performance justifies premium cost

Classification by Design and Configuration

Classification by Number of Bores

Single Bore Plates:

• One central bore hole
• Most common configuration (90%+ of installations)
• Simplest design providing reliable performance
• Bore diameters typically 60-90mm
• Used in standard single-strand casting operations

Twin Bore Plates:

• Two parallel bore holes in same plate
• Enables simultaneous casting to two strands from one ladle
• Provides redundancy if one bore experiences problems
• Requires specialized slide gate mechanism
• More common in bloom and billet casting operations

Multi-Bore Plates:

• Three or more bores for specialized applications
• Rare configuration for unique operational requirements
• Complex mechanism and higher maintenance

Classification by Bore Geometry

Circular Bore (Standard):

• Round hole providing uniform flow characteristics
• Simplest to manufacture with tightest tolerances
• Most common configuration across all industries
• Diameters range from 50mm to 100mm depending on application

Square/Rectangular Bore:

• Specialized geometry for specific flow requirements
• Sometimes used in bloom casting operations
• Less common due to manufacturing complexity

Tapered Bore:

• Graduated diameter providing optimized flow characteristics
• Reduces turbulence and erosion at bore exit
• Entrance diameter larger than exit for smoother flow transition
• Premium design for maximum service life

Contoured/Optimized Bore:

• Computer-designed profiles minimizing turbulence
• Advanced designs based on fluid dynamics modeling
• Maximum performance for critical applications

Slotted Bore:

• Elongated opening for specific flow distribution
• Used in special casting configurations
• Provides wider flow pattern versus circular bores

Standard Series Classifications

Understanding the various slide gate plate series helps in proper specification and ordering:

CS Series (Circular Standard)

Models: CS60, CS70, CS80 (numbers indicate approximate bore diameter in mm)

Specifications:

• Plate dimensions: 150-200mm square
• Bore diameters: 60-80mm
• Thickness: 30-50mm
• Standard materials: Al₂O₃-C or Al₂O₃-ZrO₂-C

Applications: Medium-capacity ladles (80-200 tons), standard continuous casting operations, general carbon and low-alloy steel production

LS Series (Ladle Standard)

Models: LS70, LS75

Specifications:

• Plate dimensions: 160-220mm
• Bore diameters: 70-75mm
• Enhanced bore edge design
• Premium materials standard

Applications: Ladle metallurgy operations, vacuum degassing, argon stirring, high-grade steel production requiring extended holding times

LG Series (Large Gate)

Models: LG21, LG22 (designations refer to size specifications)

Specifications:

• Plate dimensions: 200-250mm
• Bore diameters: 75-90mm
• Heavy-duty construction
• Thicker cross-sections

Applications: High-capacity ladles (200+ tons), high-speed continuous casting, bloom and billet operations, operations requiring maximum flow rates

QC Series (Quick Change/Quality Control)

Models: 1QC, 2QC

Specifications:

• Precision-machined surfaces
• Tight dimensional tolerances (±0.2mm)
• Optimized bore profiles
• Quick-change compatible mechanisms

Applications: Operations requiring frequent plate changes, multiple steel grade production, maximum operational flexibility, precision casting operations

BK Series

Models: 1BK, 2BK, 3BK

Specifications:

• Specific dimensional standards
• Various bore configurations
• Standard and premium material options

Applications: Specific market requirements, compatible with certain slide gate mechanisms, regional preferences

FT Series

Models: FT160, FT180, FT200

Specifications:

• Designation relates to outer dimension
• Standardized mounting patterns
• Multiple bore size options

Applications: Specialized slide gate systems, specific manufacturer equipment compatibility

FLOCON Series

Models: FLOCON4200, FLOCON6300

Specifications:

• Advanced designs with optimized flow characteristics
• Premium materials standard
• Enhanced performance specifications

Applications: High-performance operations, demanding casting conditions, maximum service life requirements

[INSERT PHOTO: Array showing different series slide gate plates with dimensional markings and labels]

3. Common Operational Problems and Failure Modes

Understanding typical problems encountered during slide gate plate operation enables proactive prevention and rapid troubleshooting when issues occur.

Plate Seizure and Sticking

Detailed Symptoms:

• Middle plate becomes increasingly difficult to move
• Hydraulic system pressure rises during sliding attempts
• Complete inability to open or close gate
• Jerky, irregular movement instead of smooth sliding
• Abnormal sounds during plate movement attempts

Root Causes Analysis:

Carbon Oxidation: At temperatures above 600°C, carbon in the plate matrix begins oxidizing in the presence of oxygen. This oxidation causes:

• Volume expansion creating mechanical interference
• Surface roughness preventing smooth sliding
• Loss of lubrication properties from carbon
• Weakened structure prone to spalling

Steel Penetration: Molten steel can infiltrate gaps between plates through:

• Insufficient clamping pressure
• Worn or damaged gaskets
• Thermal expansion creating gaps
• Surface irregularities allowing steel entry

Thermal Expansion Mismatch: Different components expanding at different rates:

• Plates expanding more than frame
• Uneven temperature distribution
• Differential expansion between materials

Contamination Issues:

• Slag accumulation between plates
• Refractory dust and debris
• Oxidized scale formation
• Moisture exposure during storage

Prevention Strategies:

• Maintain adequate preheating temperature (900-1100°C)
• Minimize exposure time between heats
• Use proper clamping pressure (follow manufacturer specifications)
• Store plates in dry, controlled environment
• Regular mechanism maintenance and lubrication
• Avoid partial opening positions for extended periods

Bore Erosion and Wear

Detailed Symptoms:

• Enlarged bore diameter beyond specifications
• Irregular, non-circular bore shape
• Loss of precise flow control capability
• Increased tendency for steel leakage when closed
• Shortened service life compared to expectations
• Visible grooves or channels in bore surface

Root Causes Analysis:

Flow-Induced Erosion: Molten steel flowing through bore creates mechanical and thermal erosion:

• High-velocity steel flow causing abrasive wear
• Turbulent flow patterns concentrating erosion
• Steel temperature exceeding material limits
• Inclusion content in steel accelerating wear

Chemical Attack: Aggressive steel chemistry or slag composition:

• High-oxygen steel chemistries
• Slag penetration attacking matrix
• Corrosive alloy elements in specialty steels
• pH incompatibility between slag and refractory

Thermal Fatigue: Repeated thermal cycling:

• Expansion/contraction creating micro-cracks
• Thermal gradients causing spalling
• Hot spots from flow irregularities

Material Quality Issues:

• Insufficient carbon content
• Poor bonding in matrix
• Contaminated raw materials
• Inadequate density from manufacturing

Prevention Strategies:

• Select appropriate material for steel grade being cast
• Maintain proper casting speeds (avoid exceeding design parameters)
• Ensure adequate preheating minimizing thermal shock
• Use premium isostatic pressed plates for demanding applications
• Monitor and optimize steel cleanliness
• Consider tapered bore designs for extended life

Steel Leakage When Closed

Detailed Symptoms:

• Dripping or streaming steel when gate supposedly closed
• Inability to achieve complete shutoff
• Safety hazard from uncontrolled steel release
• Steel loss and potential equipment damage
• Difficulty during ladle changeover

Root Causes Analysis:

Surface Damage: Compromised sealing surfaces:

• Thermal cracking of plate surfaces
• Erosion creating irregular surfaces
• Spalling from thermal shock
• Physical damage from improper handling

Bore Misalignment: Plates not properly aligned:

• Installation errors during plate mounting
• Worn guide components in mechanism
• Thermal distortion during operation
• Frame deformation from thermal cycling
• Inadequate initial alignment procedures

Plate Thickness Loss: General wear reducing effectiveness:

• Overall erosion thinning plates
• Loss of clamping effectiveness
• Increased gap between plates
• Gasket compression loss

Contamination Preventing Seal:

• Steel solidification between plates
• Slag accumulation on sealing surfaces
• Refractory debris preventing closure
• Oxidation scale on sliding surfaces

Prevention Strategies:

• Verify proper alignment during installation using alignment jigs
• Maintain adequate clamping pressure throughout operation
• Replace plates before reaching critical wear limits
• Implement regular inspection protocols
• Clean plates thoroughly during installation
• Use proper torque specifications on mounting bolts

Plate Cracking and Catastrophic Failure

Detailed Symptoms:

• Visible cracks on plate surface
• Spider-web pattern cracking
• Through-cracks allowing steel penetration
• Complete plate breakage or disintegration
• Sudden loss of flow control
• Emergency situation requiring immediate response

Root Causes Analysis:

Severe Thermal Shock:

• Inadequate or rushed preheating
• Cold steel contact on improperly heated plates
• Water or moisture contact with hot plates
• Rapid temperature changes exceeding material limits

Mechanical Stress:

• Over-tightening mounting bolts causing stress concentrations
• Impact damage during handling or installation
• Uneven support creating bending stresses
• Excessive clamping force

Material Defects:

• Manufacturing flaws (voids, inclusions)
• Improper raw material mixing
• Insufficient pressing pressure during manufacturing
• Contamination in raw materials

Operational Abuse:

• Operating beyond temperature ratings
• Thermal cycling beyond design limits
• Chemical attack from incompatible steel grades
• Extended service beyond reasonable life expectancy

Prevention Strategies:

• Never rush preheating protocols (minimum 60-90 minutes)
• Follow torque specifications precisely during installation
• Inspect plates thoroughly before installation
• Maintain proper storage conditions
• Replace plates at appropriate service intervals
• Select material appropriate for application severity

Premature Wear and Short Service Life

Detailed Symptoms:

• Service life significantly below expectations
• Bore erosion progressing rapidly
• Need for frequent plate replacement
• Higher than expected refractory consumption costs
• Inconsistent performance between plate sets

Root Causes Analysis:

Material Selection Error: Using inappropriate material:

• Standard material in demanding application
• Insufficient erosion resistance for steel grade
• Wrong composition for slag chemistry
• Economy grade where premium required

Operational Parameters Exceeded:

• Casting speed too high for plate capacity
• Ladle size larger than plate design
• Temperature extremes beyond material rating
• Excessive throughput per plate set

Steel Quality Issues:

• High inclusion content accelerating erosion
• Corrosive alloying elements
• Excessive temperature variation
• Aggressive slag chemistry

Quality Variations in Plates:

• Inconsistent raw materials
• Manufacturing variations
• Storage damage
• Inferior substitute materials

Prevention Strategies:

• Conduct thorough application analysis before material selection
• Match plate specifications to actual operating conditions
• Monitor service life data and identify trends
• Source plates from reputable manufacturers with consistent quality
• Consider upgrading to premium materials if standard grades underperform
• Implement quality control for incoming plates

4. How to Avoid Common Problems: Best Practices and Procedures

Implementing systematic procedures and operational discipline dramatically extends slide gate plate service life and improves casting reliability.

Proper Installation Procedures

Correct installation is fundamental to achieving optimal slide gate plate performance:

Pre-Installation Preparation:

Plate Inspection Protocol:

• Examine all three plates for visible damage (cracks, chips, broken corners)
• Verify dimensions match specifications and equipment requirements
• Check bore diameter and concentricity using gauges
• Confirm material grade matches application requirements
• Review manufacturer certifications and test reports
• Reject any plates with defects or damage

Equipment Preparation:

• Thoroughly clean slide gate frame and mounting surfaces
• Remove all old refractory material and debris
• Inspect mechanism for wear or damage
• Verify hydraulic/pneumatic system operation
• Check alignment guides for wear
• Lubricate mechanism per manufacturer specifications

Installation Step-by-Step:

1. Lower Plate Installation:
• Clean mounting surface completely
• Apply thin layer of refractory mortar if specified
• Position plate ensuring proper orientation
• Install gaskets or sealing materials per specifications
• Install mounting bolts hand-tight initially
2. Middle Plate Installation:
• Clean sliding surfaces in frame
• Apply high-temperature lubricant to sliding surfaces
• Insert plate into mechanism carefully
• Verify smooth sliding action before proceeding
• Check that plate moves through full range of motion
3. Upper Plate Installation:
• Position plate aligned with ladle nozzle
• Install gaskets and sealing materials
• Mount plate to frame
4. Alignment Verification:
• Use alignment rods or laser tools to verify bore alignment
• Adjust as necessary to achieve proper alignment (tolerance ±2mm)
• Document alignment measurements
5. Final Torquing:
• Torque mounting bolts to manufacturer specifications using calibrated torque wrench
• Use cross-pattern torquing sequence for even pressure distribution
• Typical torque values: 100-200 N⋅m depending on bolt size
• Re-check torque after initial thermal cycle
6. Final Inspection:
• Verify smooth operation through full travel range
• Check for any binding or resistance
• Confirm emergency close function operates correctly
• Document installation date and plate identification

Optimal Preheating Protocols

Proper preheating is perhaps the single most important factor in achieving maximum slide gate plate service life:

Preheating Objectives:

• Gradually remove moisture from plates
• Achieve uniform temperature distribution
• Minimize thermal shock during first steel contact
• Burn out organic binders in controlled manner
• Reduce thermal gradients preventing cracking

Recommended Preheating Schedule:

Phase 1 - Moisture Removal (30-40 minutes):

• Target temperature: 200-350°C
• Gradual heating driving off absorbed moisture
• Critical for unfired plates with organic binders
• Incomplete moisture removal causes steam pressure and spalling

Phase 2 - Binder Burnout (20-30 minutes):

• Target temperature: 350-600°C
• Organic resins and binders decompose
• Carbon oxidation begins
• Maintain oxidizing atmosphere minimized

Phase 3 - Final Heating (10-20 minutes):

• Target temperature: 900-1,100°C
• Approach steel contact temperature
• Achieve thermal equilibrium throughout plates
• Minimize time at peak temperature before steel contact

Total preheating time: 60-90 minutes minimum

Preheating Methods:

Gas Burner Heating:

• Direct flame heating from below
• Most common method in industry
• Requires careful flame management avoiding hot spots
• Monitor plate temperature using pyrometer

Electric Resistance Heating:

• Controlled heating using resistance elements
• More uniform temperature distribution
• Higher capital cost but better results
• Easier temperature monitoring and control

Induction Heating:

• Modern technology providing rapid, uniform heating
• Excellent temperature control
• Higher equipment cost
• Increasingly popular in advanced operations

Critical Points:

• Never rush preheating to save time
• Maintain heating rate below 200°C per hour
• Ensure all three plates reach target temperature
• Allow adequate soaking time at final temperature
• Use pyrometer to verify temperatures, don't assume

Operational Best Practices During Casting

How plates are operated during casting significantly impacts service life:

Opening the Gate:

• Open gradually over 3-5 seconds to minimize thermal shock
• Avoid rapid, full-stroke opening that causes flow surge
• Monitor flow as gate opens, adjust to desired rate
• Allow steel flow to stabilize before attempting fine adjustments

Flow Rate Management:

• Operate at designed casting speed for plate type
• Avoid excessive flow rates causing accelerated erosion
• Maintain consistent flow throughout heat when possible
• Minimize flow rate variations reducing thermal cycling

Gate Position Strategy:

• Prefer full open or full closed positions
• Minimize time at partial opening (increased bore edge erosion)
• When throttling required, make smooth adjustments
• Avoid "pumping" action (repeated opening/closing)

Heat-to-Heat Operations:

• Close gate completely between heats
• Minimize time between heats when practical
• Maintain preheating burner on between heats if delays expected
• Avoid prolonged exposure to oxidizing atmosphere

Ladle Changeover Procedures:

• Close gate smoothly as ladle empties
• Don't attempt to "chase" last steel out of ladle
• Verify complete closure before removing ladle
• Inspect plates between heats when possible

Emergency Procedures:

• Practice emergency closing procedures
• Maintain backup hydraulic/pneumatic pressure
• Have manual override capability functional
• Train operators in emergency response

Maintenance and Monitoring Programs

Systematic maintenance extends equipment life and prevents unexpected failures:

Daily Inspections:

• Visual examination of plates for cracks or damage
• Check mechanism operation for smooth movement
• Verify hydraulic/pneumatic pressure adequate
• Look for signs of leakage or unusual wear
• Document any abnormalities

Weekly Maintenance:

• Lubricate mechanism per manufacturer specifications
• Check and adjust clamping pressure if needed
• Inspect hydraulic lines for damage or leaks
• Verify emergency systems functional
• Clean surrounding area removing accumulated debris

Monthly Service:

• Detailed mechanism inspection
• Measure bore diameter tracking wear progression
• Review service life data identifying trends
• Replace worn components before failure
• Calibrate sensors and controls

Record Keeping:

• Track service life for each plate set
• Record steel grades cast and number of heats
• Document any operational issues or abnormalities
• Analyze data identifying improvement opportunities
• Share information with plate suppliers for optimization

Material Selection Optimization

Choosing the optimal material for your specific application is critical:

Application Assessment:

Steel Grade Considerations:

• Carbon steel: Al₂O₃-C standard grade typically adequate
• Low-alloy steel: Al₂O₃-C premium or Al₂O₃-ZrO₂-C
• Stainless steel: Al₂O₃-ZrO₂-C or MgO-C
• Tool steel/bearing steel: Al₂O₃-ZrO₂-C premium or isostatic pressed
• Specialty alloys: Consult with refractory engineer for optimization

Operational Intensity:

• Standard operations (8-12 heats expected): Al₂O₃-C standard
• Medium intensity (12-18 heats expected): Al₂O₃-C premium or Al₂O₃-ZrO₂-C standard
• High intensity (18-25 heats expected): Al₂O₃-ZrO₂-C premium or isostatic pressed

Economic Analysis:

• Calculate cost per heat: (plate set cost) ÷ (number of heats)
• Factor in downtime cost for plate changes
• Consider consistency and reliability value
• Balance initial cost against total cost of ownership

Trial Programs:

• Test premium materials in parallel with standard
• Carefully document performance differences
• Calculate actual cost per heat achieved
• Make data-driven decisions based on results

5. Slide Gate Plate Pricing: Understanding Costs and Value

Slide gate plate pricing varies significantly based on materials, manufacturing methods, size, and quality levels. Understanding pricing structures enables informed purchasing decisions.

Detailed Price Ranges by Material and Quality

Alumina-Carbon (Al₂O₃-C) Plates:

Standard Quality (Fired):

• Price range: $50-80 per set (3 plates)
• Bulk density: 2.95-3.00 g/cm³
• Expected service life: 8-12 heats
• Cost per heat: $5-10
• Best for: Cost-sensitive operations, commodity steel grades

Premium Quality (Unfired or Better Fired):

• Price range: $80-120 per set
• Bulk density: 3.05-3.10 g/cm³
• Expected service life: 12-15 heats
• Cost per heat: $7-10
• Best for: Improved reliability while controlling costs

Alumina-Zirconia-Carbon (Al₂O₃-ZrO₂-C) Plates:

Standard Quality:

• Price range: $120-180 per set
• Bulk density: 3.15-3.25 g/cm³
• Expected service life: 15-20 heats
• Cost per heat: $7-12
• Best for: High-grade steel, improved performance

Premium Quality:

• Price range: $180-250 per set
• Bulk density: 3.25-3.30 g/cm³
• Expected service life: 20-25 heats
• Cost per heat: $8-13
• Best for: Maximum reliability, critical applications

Isostatic Pressed Premium:

• Price range: $250-350 per set
• Bulk density: 3.28-3.35 g/cm³
• Expected service life: 25-30 heats
• Cost per heat: $9-14
• Best for: Demanding operations justifying premium investment

Alumina-Spinel-Carbon Plates:

Standard Quality:

• Price range: $100-150 per set
• Expected service life: 12-16 heats
• Cost per heat: $8-12
• Best for: Versatile performance, multiple steel grades

Premium Quality:

• Price range: $150-200 per set
• Expected service life: 16-20 heats
• Cost per heat: $9-13
• Best for: Operations requiring slag resistance

Magnesia-Carbon (MgO-C) Plates:

Standard Quality:

• Price range: $150-200 per set
• Expected service life: 10-15 heats (stainless steel)
• Cost per heat: $13-20
• Best for: Stainless steel production

Premium Quality:

• Price range: $200-300 per set
• Expected service life: 15-20 heats
• Cost per heat: $13-20
• Best for: High-alloy steels, maximum corrosion resistance

Size-Based Pricing Variations

Larger plates require more raw materials and processing:

Small Plates (CS60, <160mm):

• Base price range
• Lighter weight, easier handling
• Standard lead times

Medium Plates (CS70-CS80, 160-200mm):

• Add 10-20% to small plate pricing
• Most common size range
• Best availability

Large Plates (LG series, >200mm):

• Add 30-50% to small plate pricing
• Higher material content
• May require extended lead times
• Fewer suppliers offering these sizes

Factors Influencing Pricing

Raw Material Costs:

• Alumina prices fluctuating with global supply/demand
• Zirconia premium pricing (strategic material)
• High-purity graphite cost variations
• Metal antioxidant additives pricing

Manufacturing Complexity:

• Isostatic pressing adds 30-50% cost premium
• Precision machining for QC series
• Complex bore geometries
• Special size or custom specifications

Order Volume Discounts:

• Single set purchase: List price
• 10-50 sets: 5-10% discount
• 50-200 sets: 10-20% discount
• 200+ sets annual contract: 20-30% discount
• Committed annual volumes: Best pricing and terms

Geographic Factors:

• Chinese manufacturers: Most competitive base pricing
• European manufacturers: 30-50% premium, highest quality reputation
• Japanese manufacturers: 40-60% premium, excellent technical support
• Domestic manufacturers (your region): Freight savings, faster delivery

Quality Certifications:

• ISO 9001 certified: Moderate premium for quality assurance
• Industry-specific certifications: Additional premiums
• Complete test data packages: Small additional cost

Technical Support and Services:

• Basic technical support: Included in price
• On-site application engineering: Premium service fees
• Customization services: Engineering charges plus material premium
• Performance guarantee programs: Risk-sharing premium pricing

Total Cost of Ownership Analysis

Smart buyers look beyond initial purchase price:

Comprehensive Cost Calculation:

Total Cost = (Plate Set Cost + Installation Labor + Mechanism Maintenance + Downtime Cost) ÷ Number of Heats

Example Comparison Scenario:

Standard Al₂O₃-C Plates:

• Plate cost: $70 per set
• Installation labor: $30 per change
• Downtime cost (1.5 hours @ $500/hour): $750
• Total cost per change: $850
• Heats per set: 10
• Cost per heat: $85

Premium Al₂O₃-ZrO₂-C Plates:

• Plate cost: $200 per set
• Installation labor: $30 per change
• Downtime cost (1.5 hours @ $500/hour): $750
• Total cost per change: $980
• Heats per set: 22
• Cost per heat: $44.50

In this analysis, premium plates cost nearly 3× more initially but deliver 48% lower cost per heat due to extended service life and reduced change frequency.

Market Trends and Pricing Outlook

Current Market Conditions (2025):

• Raw material prices moderately stable
• Increased demand from growing steel production
• Shift toward premium materials for improved performance
• Consolidation among manufacturers affecting competition

Future Considerations:

• Continued development of advanced materials
• Potential for smart plates with embedded sensors
• Sustainability driving recycling and eco-friendly production
• Supply chain resilience increasingly valued alongside price

6. How to Select the Right Slide Gate Plate Manufacturer

Choosing a reliable, capable manufacturer is as important as selecting the right product specifications. A strong manufacturer partnership delivers consistent quality, technical support, and long-term value.

Comprehensive Evaluation Criteria

Manufacturing Capability and Technology Assessment

Production Equipment Evaluation:

Critical Equipment:

• High-pressure hydraulic presses (500+ tons capacity)
• Isostatic pressing equipment (150-300 MPa capability)
• Controlled atmosphere kilns with precise temperature control
• Automated mixing systems ensuring composition consistency
• Precision machining centers for tight tolerances

Visit Checklist:

• Observe cleanliness and organization of production areas
• Examine equipment maintenance and condition
• Verify capacity to meet your volume requirements
• Assess level of automation versus manual processes
• Check for modern versus outdated technology

Quality Control Infrastructure:

Essential Laboratory Capabilities:

• Bulk density measurement equipment
• Cold crushing strength testing
• Thermal shock testing facilities
• Chemical composition analysis (XRF or ICP)
• Microscopy for microstructure examination
• Dimensional measurement capabilities

Quality System Requirements:

• ISO 9001:2015 certification minimum
• ISO 14001 environmental management desirable
• Industry-specific certifications
• Statistical process control implementation
• Documented procedures and work instructions
• Traceability systems tracking materials through production

Technical Expertise and R&D:

Engineering Resources:

• Dedicated refractory engineers on staff
• Material science expertise
• Application engineering capabilities
• Problem-solving track record
• New product development capability

Technical Support Services:

• Pre-sale application consulting
• Material selection guidance
• Customization engineering
• Installation support
• Troubleshooting assistance
• Performance optimization programs

[INSERT PHOTO: Modern manufacturing facility showing isostatic press and quality control lab]

Product Quality and Performance Verification

Material Certification Requirements:

Chemical Composition:

• Certified analysis for major components (Al₂O₃, ZrO₂, C, etc.)
• Trace element analysis when relevant
• Consistency data showing batch-to-batch variation
• Raw material source documentation

Physical Properties:

• Bulk density measurements on each batch
• Apparent porosity data
• Cold crushing strength test results
• Thermal shock resistance data
• Dimension inspection reports

Dimensional Accuracy Standards:

Critical Dimensions:

• Outer dimensions: ±1.0mm tolerance
• Bore diameter: ±0.5mm tolerance
• Thickness: ±1.0mm tolerance
• Flatness: <0.5mm across surface
• Perpendicularity of bore to surface

Inspection Methods:

• CMM (Coordinate Measuring Machine) verification
• Precision calipers and micrometers
• Optical comparators for complex geometries
• 100% inspection of critical dimensions
• Statistical sampling for routine dimensions

Surface Quality Expectations:

Acceptance Criteria:

• Smooth surfaces free from major defects
• No cracks visible to naked eye
• Chips or spalls <5mm acceptable in non-critical areas
• No damage in bore area
• Consistent appearance and color

Rejection Criteria:

• Through-cracks of any size
• Spalls >10mm or in critical areas
• Bore damage or irregularities
• Delamination between layers
• Contamination or foreign material inclusion

Company Reputation and Track Record

Experience Assessment:

Longevity and Stability:

• Minimum 10 years in slide gate plate production
• Financially stable company with growth trajectory
• Consistent ownership and management
• Investment in facility improvements
• Industry recognition and awards

Reference Verification:

Customer Reference Checks: Contact at least 3-5 current customers asking:

• Product quality consistency
• Service life achieved versus claims
• Technical support responsiveness and quality
• Delivery reliability
• Problem resolution capability
• Overall satisfaction and likelihood to recommend

Site Visits: Visit reference sites observing:

• Actual plate performance in operation
• Installation practices
• Service life tracking
• Relationship with manufacturer
• Issues experienced and how handled

Industry Standing:

Reputation Indicators:

• Membership in industry associations
• Participation in technical conferences
• Published technical papers or presentations
• Patents or proprietary technologies
• Major steel company approval status
• Market share and growth trends

Problem-Solving Track Record:

Evaluation Criteria:

• Examples of resolving customer application challenges
• Continuous improvement initiatives
• Responsiveness to quality issues
• Technical innovation addressing industry needs
• Collaborative approach to optimization

Service and Support Evaluation

Pre-Sale Support Quality:

Technical Consultation:

• Willingness to understand your specific application
• Quality of recommendations provided
• Material selection guidance accuracy
• Response time to inquiries
• Depth of technical knowledge demonstrated

Application Engineering:

• Ability to analyze your operation
• Recommendations for optimization
• Identification of potential issues
• Customization proposals when needed
• Value-added suggestions

Customization Capabilities:

Custom Specifications:

• Special sizes or dimensions
• Modified bore configurations
• Alternative material formulations
• Unique design features
• Proprietary specifications

Engineering Support:

• Design assistance
• Prototype development
• Testing and validation
• Documentation and drawings
• Implementation support

After-Sales Support:

Ongoing Services:

• Installation guidance and training
• Operational training for your team
• Performance monitoring and tracking
• Troubleshooting assistance
• Periodic performance reviews
• Continuous improvement programs

Responsiveness:

• Technical inquiry response time (24-48 hours target)
• Emergency support availability
• Escalation procedures for urgent issues
• Communication clarity and effectiveness

Documentation and Information:

Provided Materials:

• Complete product specifications
• Installation instructions
• Operating guidelines
• Material safety data sheets (MSDS)
• Quality certificates
• Traceability documentation

Commercial Terms and Logistics

Pricing Structure Analysis:

Cost Components:

• Base product pricing
• Volume discount schedules
• Annual contract terms
• Price stability commitments
• Payment terms offered
• Currency considerations for international suppliers

Total Delivered Cost:

• FOB pricing versus delivered pricing
• Freight costs and responsibility
• Import duties and taxes (if applicable)
• Insurance coverage
• Packaging and handling charges

Delivery and Lead Times:

Standard Lead Times:

• Stock items: 2-4 weeks typical
• Standard products: 4-8 weeks
• Custom specifications: 8-12 weeks
• Large orders: Negotiate schedule

Reliability Factors:

• On-time delivery track record (aim for >95%)
• Communication about delays
• Expedite capability for urgent needs
• Safety stock programs
• Consignment inventory options

Inventory and Supply Chain:

Availability Strategies:

• Manufacturer's inventory of common sizes
• Distributor networks for faster delivery
• Consignment inventory at your facility
• Vendor-managed inventory programs
• Just-in-time delivery arrangements

Supply Chain Robustness:

• Raw material sourcing security
• Production backup capabilities
• Multiple production locations
• Supply chain risk management
• Business continuity planning

Risk Assessment and Mitigation

Qualification Process:

Recommended Approach:

1. Initial evaluation based on criteria above
2. Request samples for laboratory testing
3. Conduct trial installation in non-critical operation
4. Monitor performance versus existing supplier
5. Gradually increase usage based on results
6. Full qualification after successful trials

Trial Program Structure:

• Define clear success criteria
• Measure and document performance
• Compare to existing baseline
• Calculate actual cost per heat
• Assess consistency across multiple orders
• Evaluate support experience

Supplier Diversification:

Strategy Considerations:

• Primary supplier for 60-80% of volume
• Secondary supplier for 20-40% providing backup
• Specialization by application (standard vs. premium)
• Geographic diversification for supply security
• Competition maintaining pricing discipline

Red Flags and Warning Signs

Be cautious of manufacturers exhibiting:

Quality Concerns:

• Reluctance to provide complete test data
• Inconsistent product appearance between batches
• Numerous customer complaints or quality issues
• Limited or no quality certifications
• Inadequate testing capabilities
• Defensive attitude about quality questions

Business Practice Issues:

• Unrealistically low pricing suggesting corners cut
• Payment terms requiring full advance payment
• Poor communication and responsiveness
• Lack of technical knowledge about products
• No references or unwillingness to provide them
• Frequent turnover in sales or technical staff

Operational Risks:

• Single production line with no backup
• Financially unstable company
• Dependence on single raw material source
• No quality management system
• Minimal inventory creating delivery delays
• Limited production capacity relative to market demand

Building Strategic
