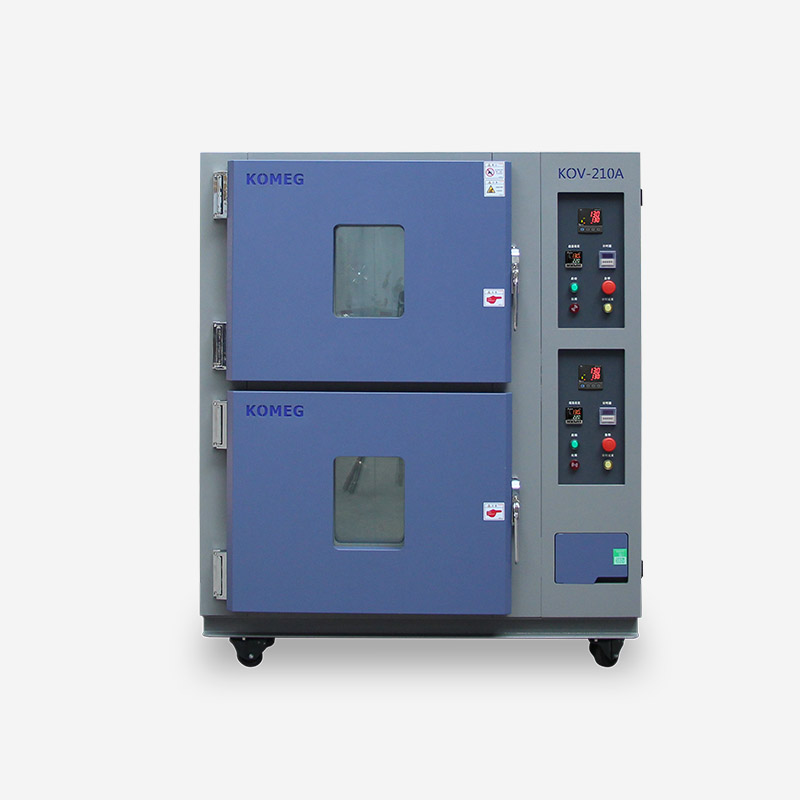

A Thermal Shock Chamber (also known as a Temperature Shock Chamber or Two-Zone/Three-Zone Thermal Shock Test Chamber) is a specialized environmental test device designed to subject test specimens to extremely rapid and severe temperature changes.
What it is:
Unlike a standard temperature cycling chamber that gradually changes the temperature of the entire workspace, a thermal shock chamber moves a test item almost instantly between separate hot and cold environments. This creates extreme thermal stress on the product, mimicking conditions like a car engine starting on a freezing morning or an aircraft rapidly ascending from ground heat to high-altitude cold.
What it does:
Its primary purpose is to evaluate a product's ability to withstand sudden, extreme temperature transitions without physical damage or performance degradation. The goal is to identify failures caused by differential thermal expansion and contraction, such as:
Cracks in materials or coatings
Seal or gasket failures
Solder joint fractures in electronics
Delamination of composite materials
Electrical connection intermittency
How It Works: There are Two Main Types:
Two-Zone (Vertical or Horizontal) Chambers:
These consist of two separate chambers: one hot (e.g., +150°C to +200°C) and one cold (e.g., -40°C to -70°C).
A pneumatic basket or platform automatically moves the test specimen between the two zones within seconds (typically <10 seconds transfer time).
The specimen experiences the extreme temperature instantly, while the zones themselves maintain their set temperatures.
Three-Zone Chambers:
These feature three zones: hot, cold, and an "ambient" or dwell zone in the middle.
The test specimen remains stationary in the middle zone, while air from the hot or cold zone is rapidly circulated into the workspace.
This method avoids moving the specimen, which is useful for larger or more sensitive items.
Key Features:
Rapid Transfer: The defining characteristic is the speed of temperature change. Transfer times are measured in seconds (typically 3-10 seconds), not minutes.
Separate Zones: Hot and cold zones are kept at extreme temperatures constantly, allowing for immediate exposure without waiting for the chamber to heat up or cool down.
Dual Temperature Extremes: Capable of maintaining both high heat and deep cold simultaneously.
High-Performance Insulation: Heavily insulated construction prevents thermal bleed between zones and ensures energy efficiency.
Main Applications:
Automotive: Testing engine sensors, electronic control units, and under-hood components that face sudden temperature swings when a car starts or stops.
Aerospace: Evaluating avionics, materials, and structural components exposed to rapid altitude and climate changes.
Electronics & Semiconductors: Screening integrated circuits, circuit boards, and connectors for solder joint integrity and material compatibility.
Military & Defense: Testing equipment that must survive extreme thermal shocks in combat or field conditions (per MIL-STD-810 standards).
Telecommunications: Validating outdoor base stations and infrastructure equipment against sudden weather changes.
A Thermal Shock Chamber is a high-stress environmental test system designed to subject products to instantaneous and extreme temperature transitions by rapidly moving specimens between separate hot and cold zones, used primarily to identify failures caused by thermal expansion and mechanical stress.
