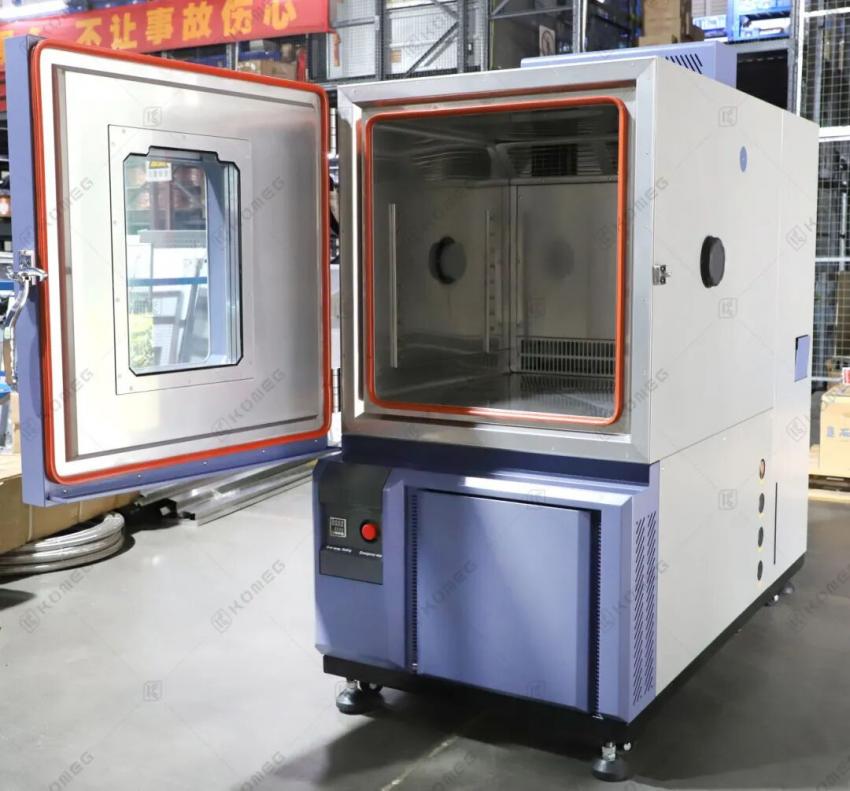

Rapid-Rate Thermal Cycle Chambers are specialized environmental testing units designed to transition quickly between high and low temperatures, typically at rates ranging from 3°C/min to over 20°C/min. These chambers are frequently utilized for Environmental Stress Screening (ESS) to identify "infant mortality" defects in electronic, automotive, and aerospace components before they reach the end user.
Key Features and Applications
Accelerated Stress Testing: Simulates harsh real-world conditions to accelerate product fatigue in solder joints, seals, and electrical connections.
Performance Metrics: Features standard temperature ranges from -70°C to +150°C (or up to +200°C), supporting both linear and non-linear ramp rates.
Industry Applications: Essential for reliability testing in aerospace, automotive, telecommunications, semiconductor, and advanced materials industries.
Compliance with Standards: Engineered to meet rigorous global standards, including JEDEC, IEC, MIL-STD, and GB/T.
Components and Functionality
Advanced Thermal Systems: Employs high-performance cooling (often utilizing binary refrigeration or liquid nitrogen assistance) and high-capacity heating to achieve rapid ramp rates.
Precision Control Systems: Equipped with programmable touchscreen controllers that feature real-time monitoring, USB data logging, and Ethernet connectivity for remote management.
Integrated Safety Protocols: Includes independent thermal protectors, emergency stop buttons, and multi-layer over-temperature protection to safeguard both the operator and the test specimens.
Common Configurations
Flexible Sizing: Available in various formats, ranging from compact floor-standing units to large-scale walk-in chambers.
Optimized Cooling: Choice of air-cooled or water-cooled systems, with water-cooling typically recommended for high-capacity systems requiring the fastest ramp rates.
By simulating rapid climate fluctuations, these chambers ensure that components can withstand the harshest operating environments, significantly enhancing overall product reliability and brand reputation.
