In the core fields of SMT electronic manufacturing and PCBA precision assembly, key processes such as component, waterproof sealing, and solder joint protection directly determine the reliability, stability and mass production yield of end products, which are also the core demands of Fortune Global 500 end customers for production line upgrading . accurately matches the personalized production needs of Fortune Global 500 end customers, and helps them realize the intelligent upgrading and high-quality development of production lines.
The SEC-1000D floor-standing automatic dispensing solution launched this time is the core product developed by Second Intelligent for high-end customized demands in the SMT field. Focusing on the double-sided root dispensing scenario of long-strip PCBA, combined with the strict standards of Fortune Global 500 end customers, it integrates an integrated customized design of visual positioning, dual-axis rotation, automatic flipping and large-capacity glue supply, realizing high-precision, high-stability and high-efficiency automatic dispensing operations, and fully meet the dual requirements of quality, efficiency and personalized configuration for high-end SMT electronic manufacturing.
1. Customer Pain Points and Customized Solution Objectives
A Fortune Global 500 end customer requires component surface root dispensing for its PCBA products, with more than 40 dispensing points per product, a precise single-point dispensing volume of 0.2g, and designated 2600ml bulk RTV silicone as the dispensing material.
2. Customized Core Scheme and Technical Highlights of SEC-1000D
This solution takes “customized adaptation, high-precision empowerment, and high-efficiency mass production” as the core.
(1) Customized Complete Machine Structure: High-Rigidity Long-Travel Design, Precisely Adapted to Long-Strip PCBA
In response to the customer’s large-size PCBA product requirements, the customized frame is welded with square tubes and steel plates, featuring high rigidity and small deformation

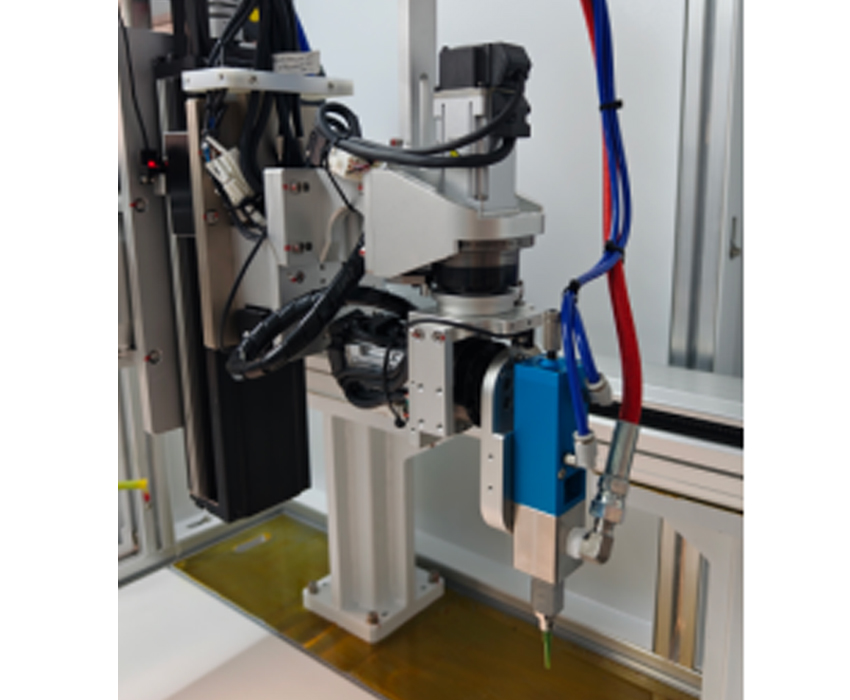

(2) Customized ZR Dual-Axis Rotation Mechanism: Precision Dispensing at Any Angle, Adapted to Complex Positions
(3)Customized Medium Suction Valve: Clean Glue Cutoff, Stable and Controllable Dispensing Volume
Combined with the customer’s requirement of precise 0.2g per point, the customized Second Intelligent medium suction valve F-H101 is adopted. Pneumatically controlled with suction-type glue cutoff
As a leading enterprise of customized automation equipment in the SMT industry, Second Intelligent has always adhered to the core positioning of “Applicable to the SMT industry, empowering the development of Fortune Global 500 enterprises”. Relying on years of industry experience and technical accumulation, with five core customized capabilities of high-rigidity frame, ZR dual-axis rotation, visual positioning, automatic flipping and large-capacity glue supply, we provide integrated customized delivery services of precision dispensing, efficient mass production and stable reliability for Fortune Global 500 end customers, deeply empower the intelligent upgrading of the SMT industry, and help Fortune Global 500 enterprises stay ahead in the global electronic manufacturing field
