The growth of modern power systems depends heavily on reliable, efficient, and cost-effective overhead transmission conductors. Among the most widely used solutions worldwide is the ACSR conductor (Aluminium Conductor Steel Reinforced), known for its excellent balance of conductivity and mechanical strength.
From high-voltage transmission lines to long-span distribution networks, ACSR conductors play a critical role in ensuring stable electricity delivery across cities, industrial zones, and rural grids. For utilities, EPC contractors, and procurement engineers, selecting the right conductor is not just a technical decision it directly impacts line efficiency, maintenance cost, and long-term grid performance.
At HNBF Power, we manufacture high-performance ACSR conductors designed to meet global transmission standards, ensuring durability, reliability, and optimized electrical performance for demanding environments.
What is ACSR Conductor?

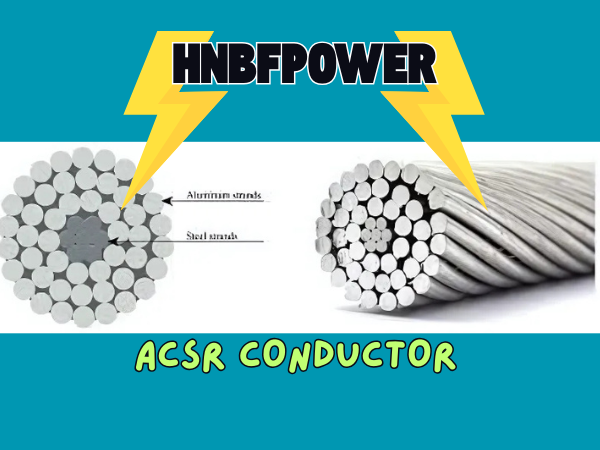

An ACSR conductor is a composite overhead transmission conductor made of:
- Aluminium strands (outer layer): Responsible for carrying electrical current efficiently
- Galvanized steel core (inner layer): Provides mechanical strength and structural stability
This hybrid design allows ACSR conductors to achieve a perfect balance between high conductivity and high tensile strength, making them suitable for long-distance power transmission and challenging terrains.
The steel core supports the conductor’s weight and tension, while the aluminium layers ensure low electrical resistance and efficient current flow.
Key Technical Advantages of ACSR Conductors
1. High Tensile Strength for Long Spans
The steel reinforcement allows ACSR conductors to be used in long-span applications such as river crossings, valleys, and mountainous regions where mechanical load is high.
2. Efficient Electrical Conductivity
Aluminium provides excellent conductivity while maintaining a lightweight structure, reducing overall transmission losses.
3. Cost-Effective Transmission Solution
Compared to all-aluminium or alloy conductors, ACSR offers a more economical option for high-voltage networks without compromising performance.
4. Thermal Stability and Load Handling
ACSR conductors can handle varying load conditions and temperature fluctuations, making them suitable for diverse climates.
5. Proven Long-Term Performance
Decades of global usage have established ACSR as a trusted standard for overhead transmission systems.
Construction and Design Variations
ACSR conductors are available in multiple configurations depending on application requirements:
- Standard ACSR (balanced aluminium-to-steel ratio)
- High-strength ACSR for extreme mechanical stress
- Light-weight variants for distribution networks
- Special corrosion-resistant designs for coastal or industrial zones
Engineers select conductor design based on factors such as span length, voltage level, environmental conditions, and load requirements.
Applications of ACSR Conductors
ACSR conductors are widely used across multiple segments of the power industry:
Power Transmission Networks
Used in high-voltage overhead transmission lines connecting substations and generation plants.
Rural Electrification Projects
Ideal for long-distance distribution in rural and remote areas due to cost efficiency and durability.
Industrial Power Distribution
Supports stable power delivery to manufacturing plants, refineries, and industrial clusters.
Cross-Terrain Installations
Suitable for challenging geographical conditions such as mountains, rivers, and deserts.
ACSR vs AAC vs AAAC: Choosing the Right Conductor
For procurement engineers, selecting between conductor types is a key decision:
- AAC (All Aluminium Conductor): Best for short spans and urban distribution
- AAAC (All Aluminium Alloy Conductor): Better corrosion resistance and moderate strength
- ACSR (Aluminium Conductor Steel Reinforced): Best for long spans and high mechanical stress
ACSR remains the preferred choice when mechanical strength and long-distance transmission efficiency are critical.
Quality Considerations in ACSR Manufacturing
High-quality ACSR conductors must meet strict international standards such as IEC and ASTM specifications. Key quality factors include:
- Uniform aluminium strand layering
- Proper galvanization of steel core
- Consistent conductor diameter and lay ratio
- Corrosion resistance in harsh environments
- Electrical and mechanical testing compliance
At HNBF Power, each ACSR conductor undergoes rigorous quality control testing to ensure consistent performance under real-world transmission conditions.
Why Utilities Choose HNBF Power ACSR Conductors
As a global manufacturer of overhead conductors and power cables, HNBF Power focuses on delivering engineering-grade solutions for utility and EPC sectors.
Our ACSR conductors are designed with:
- Precision-engineered aluminium and steel combination
- High mechanical load-bearing capacity
- Low transmission loss performance
- Custom specifications for project requirements
- Compliance with international grid standards
We work closely with utility planners and procurement teams to ensure each project receives a solution optimized for efficiency, durability, and lifecycle cost reduction.
FAQs About ACSR Conductor
1. What is the main use of ACSR conductor?
ACSR conductors are mainly used in overhead power transmission lines where both high strength and good conductivity are required.
2. Why is steel used in ACSR conductors?
Steel provides mechanical strength, allowing the conductor to withstand tension, wind load, and long-span installations.
3. Is ACSR better than AAAC?
It depends on the application. ACSR is better for long spans and high tension, while AAAC is preferred for corrosion resistance and lighter mechanical loads.
4. Can ACSR be used in coastal areas?
Yes, but special corrosion-resistant variants are recommended for high-salt environments.
5. What standards does ACSR conductor follow?
ACSR conductors typically follow IEC, ASTM, and other international utility transmission standards depending on project requirements.
Conclusion: Reliable Backbone of Modern Power Grids
The ACSR conductor remains one of the most dependable solutions for modern power transmission networks due to its unique combination of strength, conductivity, and cost efficiency. Whether used in national grid expansion, rural electrification, or industrial infrastructure, it continues to deliver consistent performance under demanding conditions.
With advanced manufacturing capabilities and strict quality control, HNBF Power provides ACSR conductors that meet the evolving needs of global power infrastructure projects.
For customized specifications, bulk procurement, or technical consultation, contact HNBF Power today and build a more reliable and efficient transmission network for the future.
