When facing numerous Tabletop Dispensing Robot options, many purchasers wrestle with fundamental question: Should we choose desktop dispensing machine or floor-standing dispensing machine? These two forms each have merits,适用场景 completely different. This article conducts systematic comparison across multiple dimensions helping you make wise decisions.
I. Intuitive Differences in Appearance and Structure

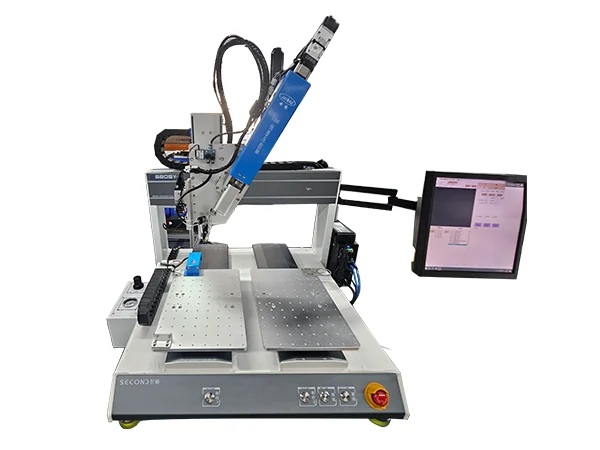

**Desktop Dispensing Machine**:
- Appearance similar to enlarged printer or小型 CNC engraving machine
- Usually adopts integrated aluminum alloy frame structure
- Footprint approximately 0.3-0.8 square meters
- Weight 30-80 kilograms, two people can move
- Directly placed on ordinary worktable or desk for use
- Height generally between 50-80cm, sitting posture operation
**Floor-Standing Dispensing Machine**:
- Appearance similar to小型 machine tool or industrial robot workstation
- Adopts heavy-duty steel welded frame or cast iron base
- Footprint approximately 1.5-4 square meters
- Weight 300-2000 kilograms, requires forklift moving and fixed foundation
- Independently mounted on ground, equipped with separate console or suspended control panel
- Height usually between 1.5-2.2 meters, standing posture operation
II. Core Performance Parameter Comparison
| Comparison Dimension | Desktop Dispensing Machine | Floor-Standing Dispensing Machine | Magnitude Gap |
|---------------------|--------------------------|--------------------------------|---------------|
| X/Y Axis Stroke | 200-500mm | 500-2000mm | 2-10x |
| Z Axis Stroke | 50-200mm | 200-600mm | 3-6x |
| Positioning Accuracy | ±0.01-0.05mm | ±0.005-0.02mm | 2-5x |
| Max Movement Speed | 200-800mm/s | 500-2000mm/s | 2-5x |
| Max Acceleration | 0.2-0.5G | 0.5-2G | 2-4x |
| Effective Load Capacity | 1-5kg | 10-50kg | 5-10x |
| Continuous Operation Stability | 8-16 hours | 24 hours+ | 1.5-3x |
| MTBF | 2000-4000 hours | 5000-10000 hours | 2-3x |
From data perspective, floor-standing dispensing machines hold obvious advantages in almost all hard指标, which is main reason for their much higher prices than desktop models.
III. Comparison of Applicable Workpiece Sizes
【Workpieces Handleable by Desktop Dispensing Machines】
- Phone motherboard: 80×50mm ✅
- LED aluminum substrate: 120×80mm ✅
- Small sensor module: 60×40mm ✅
- Smartwatch circuit board: 40×30mm ✅
- USB charger PCB: 50×25mm ✅
- Small remote control: 100×40mm ✅
- RFID tag antenna: 80×50mm ✅
- Bluetooth module: 30×15mm ✅
【Workpieces Handleable by Floor-Standing Dispensing Machines】
- Above all workpieces desktop can handle ✅
- Tablet PC motherboard: 200×150mm ✅
- Laptop motherboard: 300×200mm ✅
- Industrial control board: 400×300mm ✅
- Automotive ECU: 250×180mm ✅
- PV inverter board: 500×400mm ✅
- Large LED display module: 600×400mm ✅
- Power battery module: 800×600mm ✅
- New energy vehicle battery pack: 1000mm+ ✅
Simply put, if maximum workpiece dimension exceeds 300mm, desktop dispensing machine becomes inadequate.
IV. Production Capacity Comparative Analysis
We simulated typical small electronic product (size 80×50mm) dispensing process for capacity comparison:
【Desktop Dispensing Machine Solution (Standard Model Basis)】
- Single unit dispense time: Approx 15 seconds (including positioning and dispensing)
- Loading/unloading time: Approx 5 seconds (manual placement and removal)
- Single-station theoretical capacity: 180 units/hour
- Two shifts daily (16 hours): 2880 units/day
- Monthly capacity (22 working days): 63,360 units
【Floor-Standing Dispensing Machine Solution (Mid-High-Speed Model Basis)】
- Single unit dispense time: Approx 6 seconds (high-speed motion + rapid dispensing)
- If equipped with auto-loading/unloading conveyor: No manual loading/unloading time
- Theoretical capacity: 600 units/hour
- Three shifts daily (24 hours): 14,400 units/day
- Monthly capacity: 316,800 units
Capacity gap about 5x. But if plus multi-gun configuration (floor-standing machines can mount 4-8 dispensing heads), gap further widens to 15-20x.
V. Detailed Breakdown of Cost Composition
【Desktop Dispensing Machine TCO (5-Year)】
- Equipment purchase cost: 50,000 RMB (assumed)
- Installation commissioning: 0 RMB (self-install)
- Site occupation cost: 0 RMB (use existing workstation)
- Operator cost: 1 person × 5000 RMB/month × 12 months × 5 years = 360,000 RMB
- Maintenance cost: Approx 2000 RMB/year × 5 = 10,000 RMB
- Electricity: 1kW × 8h/day × 22 days × 12 months × 0.8 RMB × 5 years ≈ 8,450 RMB
- 5-Year TCO total: Approx 428,450 RMB
- Unit cost (based on annual 60,000 unit output): Approx 1.43 RMB/unit
【Floor-Standing Dispensing Machine TCO (5-Year)】
- Equipment purchase cost: 350,000 RMB (assumed)
- Installation commissioning: 15,000 RMB
- Site occupation cost: 10㎡ × 30 RMB/㎡/month × 12 months × 5 years = 18,000 RMB
- Operator cost: 2 persons × 5500 RMB/month × 12 months × 5 years = 660,000 RMB
- Maintenance cost: Approx 15,000 RMB/year × 5 = 75,000 RMB
- Electricity: 4kW × 20h/day × 22 days × 12 months × 0.8 RMB × 5 years ≈ 84,800 RMB
- 5-Year TCO total: Approx 1,202,800 RMB
- Unit cost (based on annual 300,000 unit output): Approx 4.00 RMB/unit
Interesting finding:
- Although floor-standing total investment is 2.8x that of desktop machine
- But because capacity is 5x higher, per-unit cost actually lower (scale economy demonstrated)
VI. Selection Decision Flowchart
```
Start
↓
Is max workpiece dimension >300mm? ——Yes→ Floor-standing dispensing machine
↓No
Is daily output >500 units? ——Yes→ Floor-standing dispensing machine
↓No
Is accuracy requirement <±0.02mm? ——Yes→ Floor-standing (precision type) or Desktop (precision type)
↓No
Is budget <50,000 RMB? ——Yes→ Desktop dispensing machine
↓No
Is dedicated maintenance personnel available? ——No→ Desktop dispensing machine
↓Yes→ Floor-standing dispensing machine
↓
End
```
VII. Possibility of Combined Usage
Actually, many mature enterprises don't choose exclusively one or the other but use both types cooperatively:
**"R&D + Mass Production" Combination**:
- R&D department uses desktop dispensing machine for process development and sample production
- Mass production workshop uses floor-standing dispensing machine for large-scale production
- Programs移植 mutually between sides, reducing duplicate development
**"Coarse-Fine Division of Labor" Combination**:
- Desktop dispensing machine handles large-area coating processes not requiring high precision
- Floor-standing dispensing machine handles key dispensing processes requiring high-precision positioning
- Reasonable process allocation maximizes value of each equipment
**"Main + Backup Redundancy" Combination**:
- Floor-standing dispensing machine serves as main production equipment
- Desktop dispensing machine serves as backup, covering when main machine under maintenance
- Also used for rework and repair unit re-dispensing
VIII. Final Recommendations
| Your Situation | Recommended Choice | Rationale |
|---------------|-------------------|-----------|
| Startup/small team | Desktop dispensing machine | Low-cost start, flexible response |
| R&D laboratory | Desktop dispensing machine | Convenient and easy, suitable for exploratory work |
| Daily output <500 units small plant | Desktop dispensing machine (can have multiple) | High cost-effectiveness |
| Daily output 500-2000 units | Depends on accuracy requirement | General accuracy choose desktop, high accuracy choose floor-standing |
| Daily output >2000 units | Floor-standing dispensing machine | Efficiency and stability paramount |
| Workpiece size >300mm | Floor-standing dispensing machine | No alternative |
| Capital-rich large enterprise | Floor-standing primary + desktop secondary | Combined deployment creates synergistic effects |
