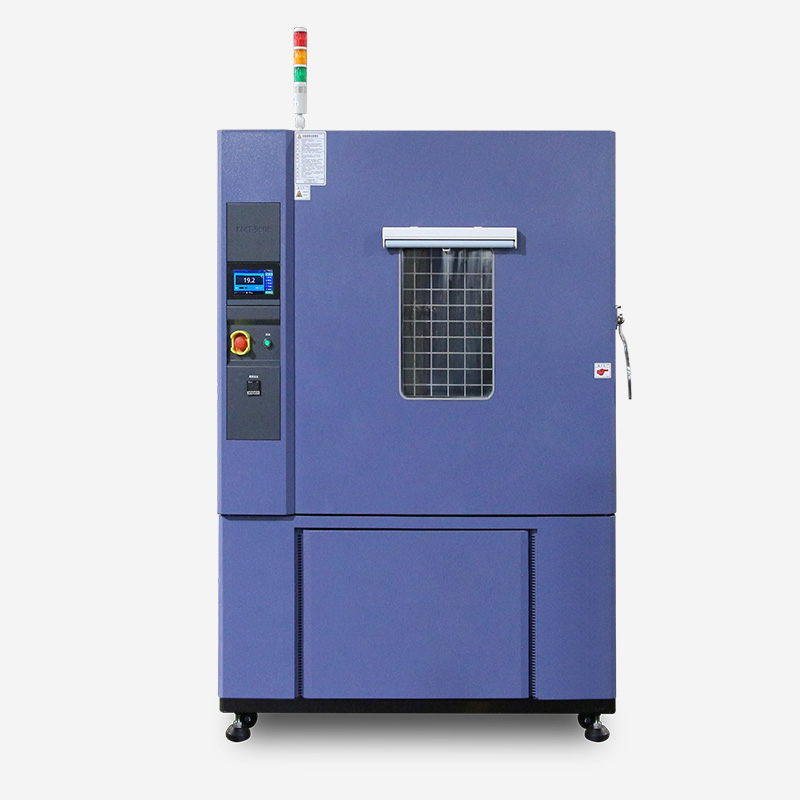

An Altitude Test Chamber (also known as a Hypobaric Chamber, Low-Pressure Chamber, or Vacuum Chamber) is a specialized environmental test system designed to simulate the low-pressure, low-temperature, and low-oxygen conditions experienced at high altitudes.
What it is:
Think of it as a sealed vessel that can pull a vacuum to replicate the atmosphere anywhere from sea level up to 100,000 feet (30,000 meters) or more. Unlike standard temperature chambers that only control heat and cold, an altitude chamber controls air pressure—and often combines this with temperature and humidity to create a complete high-altitude environment.
What it does:
Its primary purpose is to evaluate how products, components, or even living organisms respond to the unique challenges of high-altitude environments. By reducing pressure, it simulates the thin air, rapid decompression events, and extreme cold found at altitude.
Key Environmental Factors Simulated:
Low Atmospheric Pressure: The core function. Pressure is reduced to match specific altitudes (e.g., 10,000 ft, 30,000 ft, 50,000 ft).
Rapid Decompression: Simulating sudden pressure drops caused by cargo door failures, hull breaches, or explosive decompression events.
Low Temperature: Often combined with pressure control to replicate the cold of high altitude (e.g., -50°C at 40,000 ft).
Low Oxygen: Creating hypoxic environments for testing equipment or physiological responses.
How It Works:
Vacuum System: Uses vacuum pumps (often rotary vane or dry screw pumps) to remove air from the sealed chamber, reducing internal pressure.
Pressure Control: Precision valves and controllers regulate the rate of ascent/descent and hold specific altitude setpoints.
Temperature Control: Integrated heating and cooling systems (often using liquid nitrogen or mechanical refrigeration) manage the thermal environment.
Rapid Decompression Capability: Explosive or fast-acting valves allow for sudden pressure drops to simulate cabin depressurization.
Key Features:
Sealed Construction: The chamber must be airtight to maintain vacuum levels, typically constructed from heavy-gauge stainless steel or carbon steel with reinforced doors and sealing gaskets.
Viewing Ports: Windows allow observation of test specimens under pressure.
Feedthroughs: Electrical and sensor pass-throughs enable monitoring of internal components without breaking the seal.
Safety Systems: Includes emergency pressure relief, oxygen monitoring (for human testing), and redundant controls .
Main Applications:
Aerospace & Aviation:
Testing avionics, instruments, and components for proper function at cruising altitudes.
Simulating cabin pressurization systems.
Evaluating crew oxygen masks and emergency equipment.
Space & Satellite:
Testing satellite components and materials under near-vacuum conditions.
Simulating the space environment for small payloads.
Automotive:
Testing high-voltage battery packs and fuel systems for performance at high altitudes (thinner air affects cooling and combustion).
Medical & Pharmaceutical:
Testing medical devices (like IV bags or ventilators) for function at altitude.
Packaging testing—ensuring sealed products don't burst under low pressure.
Altitude training or physiological research (with human-rated chambers).
Consumer Electronics:
Testing drones, cameras, and wearables for operation at high altitudes.
Verifying that hard drives and sealed components don't fail under pressure changes.
Common Test Types:
Altitude Soak: Holding a steady low pressure for a set period to observe performance.
Altitude Cycling: Repeatedly changing altitude to simulate takeoff, flight, and landing cycles.
Rapid Decompression: Simulating a sudden pressure drop event (e.g., from 8,000 ft to 40,000 ft in seconds).
Combined Environment: Simultaneously controlling altitude, temperature, and sometimes humidity or vibration.
Industry Standards:
Altitude chambers are designed to meet various international standards, including:
MIL-STD-810: Method 500 (Low Pressure/Altitude)
RTCA DO-160: Section 4 (Altitude) for aerospace equipment
IEC 60068-2-13: Low air pressure testing
ISO 7137: Environmental conditions for aircraft equipment
An Altitude Test Chamber is a specialized environmental system that simulates high-altitude conditions by controlling atmospheric pressure—often combined with temperature—to evaluate the performance, safety, and reliability of products ranging from aircraft avionics to automotive batteries under the unique challenges of reduced pressure and thin air.
