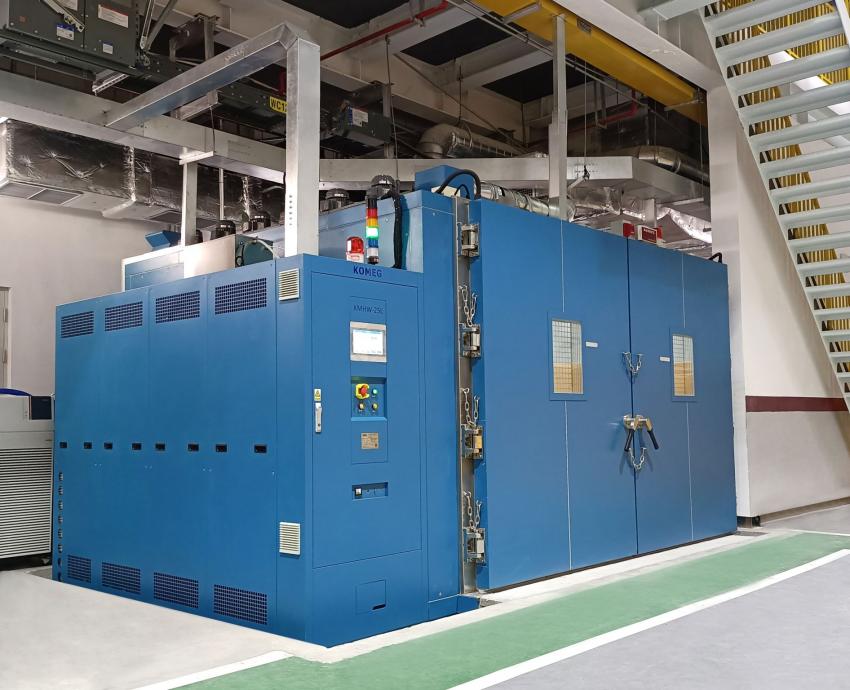

Walk-in environmental test chambers are large-scale, room-sized enclosures used to simulate controlled temperature and humidity conditions for testing products, materials, or systems. Unlike benchtop or reach-in chambers, walk-in chambers allow a person to physically enter the testing space, enabling the evaluation of oversized assemblies, palletized loads, or high volumes of smaller samples simultaneously.
Construction and Operating Principles
A walk-in environmental test chamber is typically constructed from modular insulated panels, often made of stainless steel on the interior and powder-coated steel on the exterior. The insulation core usually consists of polyurethane foam or mineral wool, providing thermal efficiency and structural rigidity. A sealed personnel door, often with a viewing window and internal safety release, allows technicians to enter and exit safely.
The chamber is equipped with a dedicated environmental control system that includes a refrigeration unit, heating elements, humidification and dehumidification systems, and high-circulation fans. Sensors placed throughout the interior provide continuous feedback to a programmable logic controller or a microprocessor-based control system. This closed-loop control allows the chamber to maintain precise temperature and humidity set points, often within tolerances of ±0.5°C and ±3% relative humidity.
Performance Characteristics
Walk-in chambers are designed for stability rather than rapid change. Unlike smaller chambers that may achieve temperature ramp rates of three to five degrees Celsius per minute, walk-in chambers typically change at slower rates, ranging from 0.5 to two degrees Celsius per minute. This is a direct consequence of their larger internal volume and thermal mass. Humidity response is similarly slower, making walk-in chambers more suitable for steady-state testing than for rapid cycling.
Temperature ranges for standard walk-in chambers typically span from approximately minus forty degrees Celsius to plus eighty-five degrees Celsius, although extended ranges are available for specialized applications. Humidity control is generally possible between ten and ninety-five percent relative humidity, with dew point limitations at extreme temperatures.
Common Applications
Walk-in environmental test chambers are widely used across several industries. In automotive manufacturing, entire vehicle interiors, instrument panels, or battery packs are tested for performance under extreme heat, cold, and humidity. In consumer electronics, full racks of servers or network equipment are evaluated for thermal management and condensation resistance. The pharmaceutical industry uses walk-in chambers for long-term stability testing and accelerated aging studies according to ICH guidelines, where thousands of samples must be stored at controlled conditions for months or years.
Aerospace and defense applications include testing avionics, munitions, and ground support equipment at simulated altitude or desert and arctic conditions. In food and beverage storage, walk-in chambers validate packaging integrity and shelf life under varying humidity levels. Industrial manufacturing also employs these chambers to test large subassemblies, such as wind turbine controllers or railway signaling equipment, under combined temperature and humidity stress.
Advantages and Limitations
The primary advantage of a walk-in environmental test chamber is its ability to test large products in their final assembled form without disassembly or scaling. This eliminates the need to extrapolate results from small test coupons or component-level samples. The ability to walk inside also simplifies sample setup, sensor placement, and in-situ observation during testing.
Another significant advantage is batch testing efficiency. A single walk-in chamber can accommodate hundreds or thousands of small samples arranged on carts or shelving, providing uniform environmental exposure across all test articles. This is particularly valuable for quality assurance lot testing or stability storage.
The limitations of walk-in chambers are equally important to consider. The initial capital cost is substantial, often an order of magnitude higher than that of a benchtop unit. Installation requires dedicated floor space, reinforced electrical service (typically three-phase at four hundred volts or higher), and sometimes additional building modifications such as drainage, dedicated HVAC for the surrounding room, or fire suppression systems.
Operating costs are also significantly higher. Refrigeration and heating systems for large volumes consume considerable electrical energy. Humidity control, particularly dehumidification, adds further load. Maintenance requirements are more complex, often requiring trained technicians for refrigeration servicing, sensor calibration, and door seal replacement.
Safety and Design Considerations
Because personnel may enter a walk-in chamber during operation or between cycles, safety features are critical. Most chambers include interior emergency push buttons, audible alarms, and door release mechanisms that operate even if the main power is lost. Interior lighting is provided, and viewing windows allow external observation. Some designs also include oxygen monitoring for applications involving inert gas purging or when chambers are used in unattended mode.
Thermal protection is essential. Anti-condensation heaters around door frames prevent ice formation at low temperatures. Floor gratings or anti-slip surfaces are standard to prevent falls. For high-temperature operation, interior surface temperatures must be limited to prevent burns, and warning signage is typically posted at the entrance.
Installation and Site Requirements
Installing a walk-in environmental test chamber is a significant engineering effort. The chamber may be shipped as a knock-down kit of panels to be assembled on-site, or as prefabricated modular sections. A level and reinforced concrete floor is required to support the weight of the chamber, test samples, and internal racks. Adequate clearance for ventilation of the refrigeration and control systems must be provided, along with proper electrical disconnects and environmental drains for condensate removal.
Site planning must also account for heat rejection. The refrigeration system dissipates heat into the surrounding room, which may require supplemental air conditioning to maintain acceptable working temperatures for personnel and other equipment.
Walk-in environmental test chambers are indispensable tools for industries that require full-scale product validation under realistic temperature and humidity conditions. Their defining feature, the ability for a technician to enter the test space, enables applications that are simply impossible with smaller chambers. However, this capability comes with substantial costs in terms of capital investment, installation complexity, and ongoing energy consumption. When the test volume, sample size, or regulatory requirements justify these costs, a walk-in chamber represents the most direct and reliable method for environmental testing at scale.
