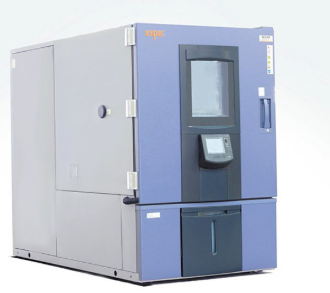

A pharmaceutical stability chamber provides a precisely controlled environment of temperature and humidity to support long-term, intermediate, and accelerated stability studies as per ICH Q1A(R2). Its operation is based on three core principles: accurate environmental control, forced-air circulation, and continuous monitoring.
How It Works
1️⃣ Temperature Control
Temperature is maintained through a refrigeration system that removes heat and electric heating elements that add heat when needed. A PID controller continuously receives feedback from PT100 or RTD sensors to regulate cooling and heating output, keeping temperature fluctuation typically within ≤ ±0.5°C.
2️⃣ Humidity Control
Humidification is achieved using a steam generator or ultrasonic system, while dehumidification is performed by cooling coils that condense excess moisture. A real-time RH sensor provides continuous feedback to the PID controller, maintaining relative humidity accuracy within ±3% to ±5%.
3️⃣ Uniform Air Circulation
A forced-air blower continuously circulates conditioned air throughout the chamber. Perforated shelves and strategically placed air diffusers ensure even distribution, eliminating hot or cold spots and achieving temperature uniformity of ≤ ±1.0°C across the entire chamber volume.
4️⃣ Monitoring & Alarms
The chamber continuously logs temperature and RH data at programmable intervals. Automatic alarms are triggered for any deviations beyond preset limits, door openings, power interruptions, or sensor faults. For regulated environments, optional 21 CFR Part 11 compliance provides electronic signatures, audit trails, and secure data storage.
5️⃣ Validation (IQ, OQ, PQ)
Before use in regulatory studies, the chamber undergoes three validation stages. Installation Qualification (IQ) confirms correct installation according to manufacturer specifications. Operational Qualification (OQ) verifies that the chamber operates within specified parameters under no-load conditions. Performance Qualification (PQ) proves that the chamber maintains uniform and stable conditions under actual load, including temperature and humidity mapping studies.
Why This Principle Is Effective
This working principle is highly effective for several reasons. It provides stable, validated environmental conditions with minimal temperature and humidity fluctuation. It meets global regulatory requirements, including ICH, WHO, EMA, and FDA standards. It ensures reliable stability data for accurate shelf-life determination. Finally, it supports all standard ICH storage conditions: long-term at 25°C/60% RH, intermediate at 30°C/65% RH, and accelerated at 40°C/75% RH.
The stability chamber works by combining PID-controlled temperature and humidity systems with forced-air circulation and real-time monitoring. This integrated approach ensures a uniform, validated environment that meets global regulatory standards and produces reliable stability data for pharmaceutical shelf-life determination.
