Thermal Shock Test Chambers vs. Temperature Cycling Test Chambers: A Comparative Analysis and Selection Guide

In the field of reliability testing, thermal shock test chambers and temperature cycling test chambers are two core devices used to evaluate product durability under extreme temperature conditions. However, they differ significantly in design principles, testing objectives, and industrial applications. This article compares their temperature variation characteristics, structural designs, testing goals, and typical use cases to provide engineers with a reference for equipment selection.

1. Temperature Variation Rate and Method: Instantaneous Shock vs. Gradual Cycling

1.1 Thermal Shock Test Chambers: Ultra-Fast Temperature Transitions in Seconds

The defining feature of thermal shock testing is ultra-high-speed temperature change, with rates ranging from 5 to 30°C per second. Some chambers can even transition from -65°C to +150°C in under 10 seconds. This extreme condition is achieved through two structural designs:

• Two-Zone chambers: Samples are rapidly moved between separate high-temperature and low-temperature zones using a mechanical basket, enabling abrupt temperature changes.
• Three-zone chambers: Samples remain stationary in a test zone while high/low-temperature airflow is switched via dampers, reducing mechanical stress from movement.

Typical applications include:

• Aerospace: Simulating the instantaneous thermal expansion/contraction of rocket casings during launch.
• Semiconductor industry: Detecting delamination risks in chip packaging materials under thermal shock.
• Military sector: Verifying the fatigue resistance of missile casings in extreme environments.

1.2 Temperature Cycling Test Chambers: Controlled Temperature Variation in Minutes

Temperature cycling chambers feature slower temperature change rates, typically 1 to 5°C per minute, with some rapid-rate models reaching 10 to 20°C per minute. Using a single-chamber design with refrigeration/heating systems, they create periodic cycles between preset temperature extremes (e.g., -40°C to +85°C).

These chambers focus on simulating long-term temperature fluctuations in real-world use, such as:

• Automotive electronics: Validating the reliability of vehicle ECUs under daily temperature swings.
• New energy batteries: Assessing thermal management performance during charge/discharge cycles.
• Consumer electronics: Testing smartphone battery cycle life under extreme temperatures.

2. Structural Design: Mechanical Movement vs. Static Control

2.1 Thermal Shock Test Chambers: Dynamic Switching in Dual/Triple Zones

• Two-zone chambers: Comprise independent high-temperature and low-temperature zones. Samples are transferred via a mechanical basket, enabling fast temperature shifts but potentially introducing mechanical stress.
• Three-zone chambers: Add a dedicated test zone where samples remain stationary. Temperature changes are achieved by switching airflow via dampers, offering faster recovery times (typically ≤5 minutes) and eliminating mechanical interference (albeit at higher cost).

2.2 Temperature Cycling Test Chambers: Static Temperature Field Control in a Single Chamber

These chambers use a single-chamber design with a compressor, heater, and airflow systems to achieve temperature cycling. Key design priorities include:

• Temperature uniformity: Temperature deviations across the chamber must be controlled within ±2°C to prevent localized overheating or cooling.
• Humidity compatibility: Some models can simultaneously control humidity (e.g., 85%RH) to simulate complex environments like high-temperature, high-humidity conditions.
• Adjustable cycle parameters: Customizable temperature ramp rates and dwell times to match diverse product testing requirements.

3. Testing Objectives: Failure Screening vs. Lifespan Prediction

3.1 Thermal Shock Test Chambers: Revealing Hidden Defects Under Instantaneous Thermal Stress

The primary goal is to detect instantaneous thermal stress-induced failures, with common failure modes including:

• Creep damage: Plastic deformation of metals under high-temperature shock.
• Thermal fatigue fracture: Crack propagation caused by repeated thermal shocks.
• Interface delamination: Separation of composite materials or packaging structures due to thermal mismatch.

Typical standards like GJB 150.5A (Military Equipment Thermal Shock Testing) and MIL-STD-810G often require 3 to 10 cycles to screen for early-stage failures.

3.2 Temperature Cycling Test Chambers: Evaluating Long-Term Durability and Lifespan

By simulating temperature fluctuations over a product’s lifecycle, these chambers predict real-world reliability. Common failure modes include:

• Material aging: Performance degradation of polymers under long-term thermal cycling.
• Solder joint fatigue: Cracks in electronic component solder joints due to thermal expansion/contraction.
• Seal failure: Permanent deformation of rubber components during temperature cycles.

Standards such as GB/T 2423.22 (Temperature Change Testing for Electrical and Electronic Products) and IEC 60068-2-14 typically require 100 to 1,000 cycles to validate product lifespan.

4. Industrial Applications: High-Tech Fields vs. General Industrial Scenarios

4.1 Thermal Shock Test Chambers: "Extreme Environment Simulators" for High-Tech Sectors

• Semiconductor industry: ESPEC TSA series thermal shock chambers test new energy battery thermal safety, ensuring no thermal runaway under extreme temperature changes.
• Aerospace: Simulating rocket launch thermal shocks to verify engine component fatigue resistance.
• Military sector: Detecting structural integrity issues in missile casings under ultra-low (-80°C) to ultra-high (+220°C) temperature alternations.

4.2 Temperature Cycling Test Chambers: "Durability Validation Platforms" for Industrial Use

• Automotive electronics: Hongzhan Technology’s rapid-rate chambers screen new energy vehicle motor controllers for reliability under -40°C to +85°C cycles.
• Consumer electronics: Smartphone batteries undergo temperature cycling to validate charge/discharge cycle life and prevent rapid capacity decay under extreme temperatures.
• New energy sector: Photovoltaic modules are tested for encapsulation material durability under simulated day/night temperature cycles.

5. Selection Guidelines: Match Equipment Characteristics to Testing Needs

Choose Thermal Shock Test Chambers when:

• Simulating extreme instantaneous temperature changes (e.g., rocket launches, polar environments).
• Testing material sensitivity to thermal stress (e.g., semiconductor packaging, composites).
• Rapidly screening for early-stage failures (e.g., military, aerospace applications).

Choose Temperature Cycling Test Chambers when:

• Evaluating long-term product durability (e.g., automotive components, consumer electronics).
• Matching temperature ramp rates to real-world usage scenarios (e.g., new energy battery charge/discharge cycles).
• Requiring simultaneous humidity control or multi-factor coupling tests (e.g., high-temperature high-humidity cycling).

While both thermal shock and temperature cycling test chambers fall under temperature environment testing equipment, their design philosophies and testing objectives differ fundamentally. The former uses second-scale extreme temperature changes to reveal instantaneous failures, while the latter employs minute-scale gradual cycling to predict long-term lifespan. Engineers should select equipment based on product characteristics, testing phase, and industry standards to ensure accurate and efficient reliability validation.

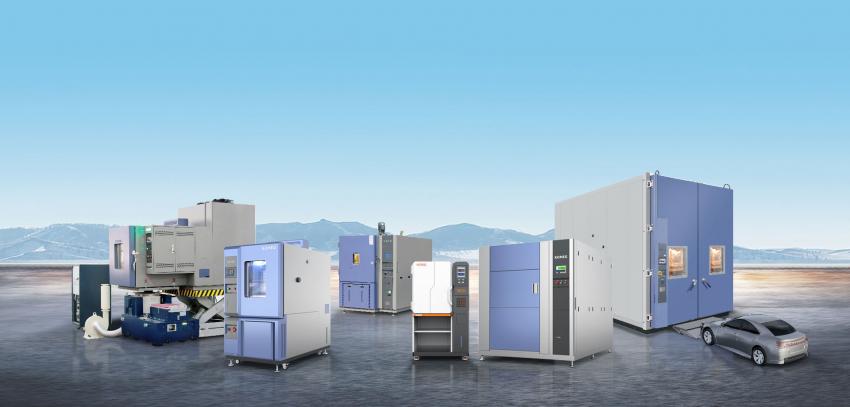

As a 30+ year experienced global supplier of environmental test chambers, KOMEG provides both standard and customized thermal shock chambers, temperature cycling/humidity chambers, and other environmental testing equipment with ISO 9001/ISO 14001 certification, serving over 70 countries and regions.
