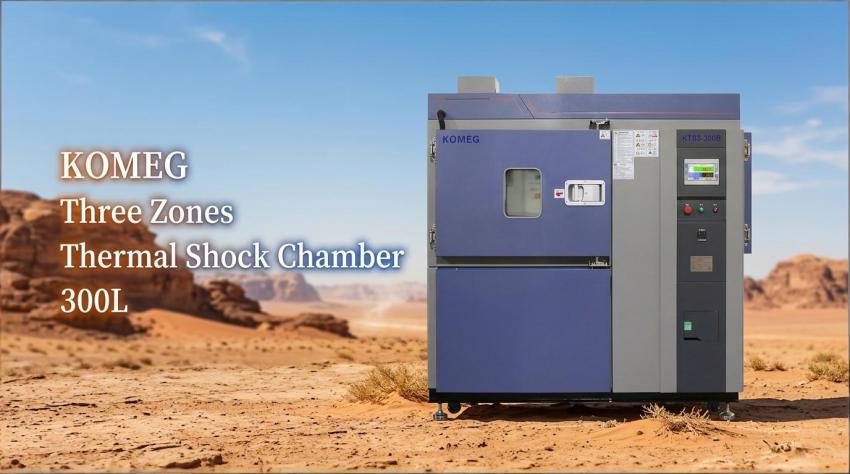

The Three-Zone Thermal Shock Test Chamber is a specialized piece of equipment used to evaluate product reliability under extreme and rapid temperature variations. Its defining characteristic is that the test sample remains stationary while temperature changes are achieved through rapid switching of airflow paths, thereby simulating the thermal stress conditions that products may encounter in real-world operating environments.
Core Working Principle: Stationary Sample with Airflow Switching
The three-zone test chamber consists of three vertically arranged, independent zones:
-
Upper Zone (Hot Preheating Zone): Maintains a reservoir of high-temperature air, typically reaching temperatures from +150°C to +220°C or higher.
-
Lower Zone (Cold Precooling Zone): Maintains a reservoir of low-temperature air, typically reaching temperatures as low as -40°C, -65°C, or even -100°C.
-
Middle Zone (Test Area): The test sample is placed here and remains stationary throughout the entire test cycle.
Rapid temperature changes are achieved by controlling high-speed pneumatic dampers (or valves) that connect the test area to either the hot zone or the cold zone.
For a high-temperature shock, the damper to the cold zone closes while the damper to the hot zone opens. A powerful circulation fan forces the preheated air from the upper zone into the middle test area, rapidly raising its temperature. For a low-temperature shock, the opposite occurs: the damper to the hot zone closes while the damper to the cold zone opens, allowing the precooled air from the lower zone to flow into the test area. Some chambers also offer an ambient state, in which the test area is vented to room temperature air.
The damper switching process typically completes within 5 to 30 seconds, subjecting the stationary test sample to a sudden and intense thermal shock effect.
Key Components and Technical Specifications
To achieve precise and rapid temperature control, the chamber relies on several critical subsystems:
-
Refrigeration System: Employs a cascade refrigeration circuit (commonly using refrigerants such as R404A and R23) to achieve and maintain extremely low temperatures in the precooling zone.
-
Heating System: Typically utilizes nickel-chromium (Ni-Cr) finned heaters, regulated by solid-state relays (SSR) and a PID controller to deliver accurate and stable heating.
-
Control System: A programmable logic controller (PLC) with a touch-screen interface manages test operations. Users can set test profiles (e.g., +125°C for 30 minutes, then -55°C for 30 minutes, for 100 cycles), monitor system status, and record data.
-
Temperature Recovery Time: A critical performance parameter that defines the time required for the test area to return to the set temperature after the dampers have switched. High-quality chambers can achieve recovery times within 5 minutes.
Key Advantages and Application Fields
The three-zone design offers significant advantages over two-zone (basket-type) chambers, primarily because the test sample remains stationary. This makes it ideal for testing large, heavy, fragile, or wired products such as battery packs, avionics, and complete electronic control units (ECUs)—items that could be damaged by the mechanical movement required in two-zone chambers. In contrast, two-zone chambers are better suited for small, robust components such as semiconductor chips and packaged integrated circuits (ICs).
Due to its versatility and safety, the three-zone thermal shock test chamber is a critical tool across several industries:
-
Automotive Industry: Used for testing ECUs and battery modules.
-
Aerospace Industry: Used for testing avionics and connectors.
-
Electronics Industry: Used for testing printed circuit boards (PCBs) and electronic components.
-
Materials Science: Used to study material behavior under rapid temperature changes.
Through such testing, manufacturers can identify potential weaknesses—such as material cracking, solder joint failure, or seal leakage—before products are released to market, thereby ensuring higher reliability and safety.
