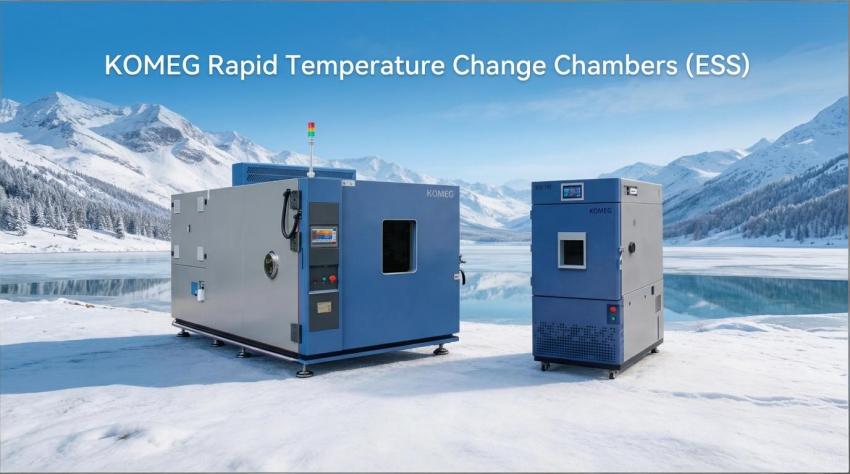

Basic Definition of Rapid Temperature Change Chamber (ESS)
A Rapid Temperature Change Chamber, commonly referred to as ESS (Environmental Stress Screening), is a precision environmental simulation testing device designed to apply controlled, fast-rate temperature fluctuations to test specimens. Its core purpose is to deliver targeted thermal stress to components, finished products, or material samples, uncovering latent defects undetectable under constant temperature conditions, and verifying long-term reliability, stability, and durability in fluctuating extreme thermal environments. Unlike standard constant temperature and humidity chambers, it prioritizes fast temperature ramp rates and precise cycle control, serving as a key tool for reliability screening in R&D, batch quality inspection, and compliance certification for high-precision industries.
Core Working Principle
This chamber operates via a high-efficiency cascade refrigeration system, intelligent electric heating modules, and forced air circulation technology, following the inverse Carnot cycle for rapid heat exchange and temperature regulation. It features a closed-loop air duct design with high-speed circulating fans to ensure uniform heat transfer between internal air and test specimens, eliminating local temperature discrepancies that compromise accuracy. A high-sensitivity sensor-driven integrated control system monitors real-time chamber temperature, dynamically adjusting refrigeration and heating output to maintain set ramp rates, target temperatures, and holding times, guaranteeing consistent, repeatable test cycles. Thermal stress during rapid temperature shifts arises from mismatched Coefficients of Thermal Expansion (CTE) between different sample materials, exposing structural weaknesses, connection flaws, or material performance defects.
Key Technical Parameters and Performance Indicators
A rapid temperature change chamber’s performance is defined by core technical parameters that directly shape its test scope and screening efficiency. The most critical metric is temperature change rate, with standard models ranging from 5°C/min to 25°C/min, and custom high-speed models exceeding 30°C/min for strict screening needs. The standard operating temperature range spans -70°C to 180°C, with extended ranges available for extreme application scenarios.
Control accuracy is equally vital: internal temperature fluctuation is typically limited to ±0.5°C, deviation to ±1.5°C, and uniformity across the workspace to ±2°C, ensuring consistent thermal stress across the entire test specimen. The chamber supports programmable cyclic testing, allowing users to set heating ramps, constant temperature holds, cooling ramps, and repeated cycles, with flexible adjustments for cycle duration and target temperatures to align with various test standards and product requirements.
Core Application Scenarios
This chamber is widely used in reliability-critical industries, as rapid thermal stress screening efficiently identifies early defects and lowers in-use failure risks. In electronics and semiconductors, it tests PCBs, integrated circuits, connectors, and communication modules, detecting solder joint cracks, component delamination, and loose internal connections. For automotive and new energy sectors, it validates ECUs, battery modules, sensors, and power components by simulating extreme temperature fluctuations in real driving environments.
It is also essential for aerospace, defense, and medical device testing, verifying the stable performance of avionics, precision instruments, and implantable devices in harsh thermal conditions. Additionally, it evaluates heat resistance, cold resistance, and fatigue performance of metals, polymers, and composite materials under repeated rapid temperature changes.
Key Distinction From Thermal Shock Chambers
A common confusion lies between ESS rapid temperature change chambers and thermal shock chambers, both used for thermal stress testing, but with distinct mechanisms and uses. ESS chambers generate gradual, controlled temperature ramps within a single chamber, focusing on progressive stress screening that mimics real-world slow environmental temperature shifts. Thermal shock chambers, by contrast, use two separate hot and cold zones, moving samples between them instantly via a mechanical basket to create near-instant temperature jumps (completed in seconds), simulating extreme sudden thermal shock.
In practice, ESS chambers are designed for routine environmental stress screening and long-term cyclic reliability testing, while thermal shock chambers target products exposed to sudden extreme temperature changes. The two are not interchangeable, and selection depends on the product’s actual application environment and test goals.
Applicable Testing Standards
To ensure standardized, credible test results, rapid temperature change chambers comply with major international and domestic reliability standards, including MIL-STD-2164 (military environmental stress screening), IEC 60068-2-14 (electronic equipment temperature cycle testing), and GJB 1032-90 (Chinese military environmental stress screening standard). Following these norms ensures test data is universally recognized and supports product certification and market access.
Core Value and Testing Significance
The core value of ESS rapid temperature testing is compressing long-term natural environmental aging into short accelerated trials, drastically cutting product reliability verification cycles. By screening out defective items early in R&D or production, it reduces after-sales failure risks and maintenance costs, while boosting product robustness and market competitiveness. It also provides reliable data for design optimization, material selection, and process upgrades, helping manufacturers meet strict quality controls and improve product lifespan and stability in complex operating environments.
A Rapid Temperature Change Chamber, commonly referred to as ESS (Environmental Stress Screening), is a precision environmental simulation testing device designed to apply controlled, fast-rate temperature fluctuations to test specimens. Its core purpose is to deliver targeted thermal stress to components, finished products, or material samples, uncovering latent defects undetectable under constant temperature conditions, and verifying long-term reliability, stability, and durability in fluctuating extreme thermal environments. Unlike standard constant temperature and humidity chambers, it prioritizes fast temperature ramp rates and precise cycle control, serving as a key tool for reliability screening in R&D, batch quality inspection, and compliance certification for high-precision industries.
Core Working Principle
This chamber operates via a high-efficiency cascade refrigeration system, intelligent electric heating modules, and forced air circulation technology, following the inverse Carnot cycle for rapid heat exchange and temperature regulation. It features a closed-loop air duct design with high-speed circulating fans to ensure uniform heat transfer between internal air and test specimens, eliminating local temperature discrepancies that compromise accuracy. A high-sensitivity sensor-driven integrated control system monitors real-time chamber temperature, dynamically adjusting refrigeration and heating output to maintain set ramp rates, target temperatures, and holding times, guaranteeing consistent, repeatable test cycles. Thermal stress during rapid temperature shifts arises from mismatched Coefficients of Thermal Expansion (CTE) between different sample materials, exposing structural weaknesses, connection flaws, or material performance defects.
Key Technical Parameters and Performance Indicators
A rapid temperature change chamber’s performance is defined by core technical parameters that directly shape its test scope and screening efficiency. The most critical metric is temperature change rate, with standard models ranging from 5°C/min to 25°C/min, and custom high-speed models exceeding 30°C/min for strict screening needs. The standard operating temperature range spans -70°C to 180°C, with extended ranges available for extreme application scenarios.
Control accuracy is equally vital: internal temperature fluctuation is typically limited to ±0.5°C, deviation to ±1.5°C, and uniformity across the workspace to ±2°C, ensuring consistent thermal stress across the entire test specimen. The chamber supports programmable cyclic testing, allowing users to set heating ramps, constant temperature holds, cooling ramps, and repeated cycles, with flexible adjustments for cycle duration and target temperatures to align with various test standards and product requirements.
Core Application Scenarios
This chamber is widely used in reliability-critical industries, as rapid thermal stress screening efficiently identifies early defects and lowers in-use failure risks. In electronics and semiconductors, it tests PCBs, integrated circuits, connectors, and communication modules, detecting solder joint cracks, component delamination, and loose internal connections. For automotive and new energy sectors, it validates ECUs, battery modules, sensors, and power components by simulating extreme temperature fluctuations in real driving environments.
It is also essential for aerospace, defense, and medical device testing, verifying the stable performance of avionics, precision instruments, and implantable devices in harsh thermal conditions. Additionally, it evaluates heat resistance, cold resistance, and fatigue performance of metals, polymers, and composite materials under repeated rapid temperature changes.
Key Distinction From Thermal Shock Chambers
A common confusion lies between ESS rapid temperature change chambers and thermal shock chambers, both used for thermal stress testing, but with distinct mechanisms and uses. ESS chambers generate gradual, controlled temperature ramps within a single chamber, focusing on progressive stress screening that mimics real-world slow environmental temperature shifts. Thermal shock chambers, by contrast, use two separate hot and cold zones, moving samples between them instantly via a mechanical basket to create near-instant temperature jumps (completed in seconds), simulating extreme sudden thermal shock.
In practice, ESS chambers are designed for routine environmental stress screening and long-term cyclic reliability testing, while thermal shock chambers target products exposed to sudden extreme temperature changes. The two are not interchangeable, and selection depends on the product’s actual application environment and test goals.
Applicable Testing Standards
To ensure standardized, credible test results, rapid temperature change chambers comply with major international and domestic reliability standards, including MIL-STD-2164 (military environmental stress screening), IEC 60068-2-14 (electronic equipment temperature cycle testing), and GJB 1032-90 (Chinese military environmental stress screening standard). Following these norms ensures test data is universally recognized and supports product certification and market access.
Core Value and Testing Significance
The core value of ESS rapid temperature testing is compressing long-term natural environmental aging into short accelerated trials, drastically cutting product reliability verification cycles. By screening out defective items early in R&D or production, it reduces after-sales failure risks and maintenance costs, while boosting product robustness and market competitiveness. It also provides reliable data for design optimization, material selection, and process upgrades, helping manufacturers meet strict quality controls and improve product lifespan and stability in complex operating environments.
With over 30 years of expertise, KOMEG provides reliable, standard, and customized Rapid Temperature Cycle Test Chambers that meet ISO and CE standards. Whether you need a reach-in unit or a massive walk-in ESS system, KOMEG ensures your products are built to last.
