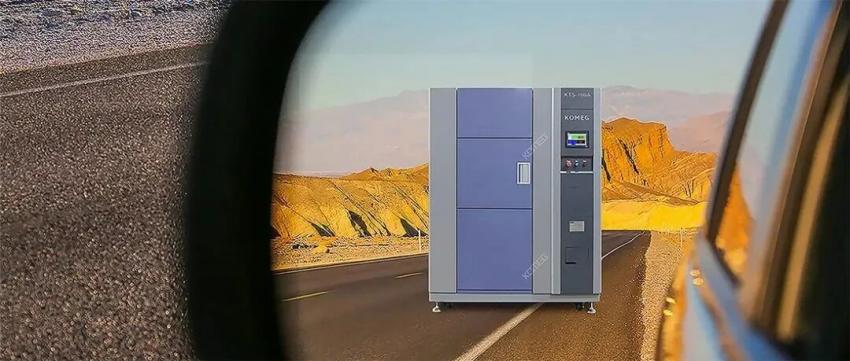

A thermal shock test chamber, also referred to as a temperature shock chamber, is a specialized testing device designed to evaluate how materials and products hold up under extreme and rapidly changing temperature conditions.

What Is a Thermal Test Chamber?

A thermal shock test chamber can simulate sudden temperature swings, making it an essential tool for testing a wide range of materials and products. The chamber quickly shifts between extremely high and extremely low temperatures—or the reverse—to observe the physical and chemical changes that occur in test samples. These tests are vital for understanding how materials behave when they expand and contract due to temperature changes, and for predicting how they will perform in real-world environments.

How Does a Thermal Shock Test Chamber Work?

The chamber creates rapid temperature changes by using separate high-temperature and low-temperature zones inside the unit. Test samples are moved back and forth between these zones, experiencing extreme temperature shifts repeatedly over multiple cycles. Advanced temperature control systems, along with fast-response heating and cooling mechanisms, ensure that each temperature transition is precise and stable.

Key Components of a Thermal Shock Test Chamber

Insulated Enclosure – The outer wall is made of cold-rolled steel with a baked finish, while the inner wall uses SUS304 stainless steel. The main body is insulated with rigid polyurethane foam and glass fiber, and the door uses glass fiber insulation. Inside the air circulation channel are components such as fans, heaters, evaporators, air dampers, and temperature sensors.

Standard Port – A 50mm diameter lead hole is located on the left side of the chamber for cable or sensor access.

Sample Basket Capacity – The chamber includes two sample baskets, each capable of holding up to 5 kilograms of evenly distributed weight.

Mobility and Support – Four adjustable feet provide stable support, and four wheels allow for easy movement.

Chamber Door – A single door with hinges on the left and a handle on the right.

Circulating Fans – Separate fans are used for high-temperature or ambient exposure and for low-temperature exposure. Both are three-phase, 400-watt centrifugal fans.

Control Panel – This includes the controller display screen, failure indicator light, hour meter, R232 interface, over-temperature protection setting device, and the main power switch.

Mechanical Room – Houses the refrigeration unit, drainage system, and exhaust fan.

Power Distribution Cabinet – Contains the main leakage circuit breaker, controller, power distribution board, cooling fan, and recirculating fan motors for both high and low temperatures.

Heating System – Uses a nickel-chromium alloy strip heater controlled by a solid-state relay (SSR) with non-contact periodic pulse width modulation.

Power and Drain Connections – Located at the rear of the chamber.

Main Applications of Thermal Shock Test Chambers

Metal Materials

Temperature fluctuations are a common challenge in the production and use of metal materials. Thermal shock testing allows manufacturers to evaluate how metals perform under extreme temperatures, ensuring they remain reliable in different environmental conditions. For example, metal components used in aerospace and automotive industries must maintain their structural strength despite severe temperature changes. Through thermal shock testing, manufacturers can verify the fatigue resistance and thermal stability of metals, helping to prevent cracks or fractures caused by thermal expansion and stress.

Plastics and Rubber

Plastics and rubber behave differently across various temperatures. Thermal shock tests help manufacturers understand how these materials react to rapid temperature changes, allowing them to refine material formulas and improve durability and performance. This is especially important in industries such as electronics, home appliances, and medical devices. These tests also assess the thermal aging properties of plastics and rubber, ensuring they remain stable and safe over long periods of use.

Electronic Components

Electronic parts experience temperature fluctuations during normal operation, which can affect their performance and lifespan. Thermal shock chambers simulate these temperature changes, helping engineers identify potential failure points, optimize designs, and improve product reliability and stability. Semiconductor devices and printed circuit boards (PCBs), for instance, are commonly tested to verify how they perform under temperature variations. Thermal shock testing also checks soldering quality and electrical performance, reducing the risk of electrical failures or short circuits caused by temperature shifts.

Composite Materials

Composite materials are widely used in aerospace, automotive, and construction industries. Because these materials combine different types of substances, their behavior under temperature changes can be complex. Thermal shock test chambers help engineers understand key parameters such as the coefficient of thermal expansion and the bond strength between layers. This knowledge allows them to optimize material design and application. Performance data from thermal shock tests can also guide researchers in improving the structural design of composites, making them more reliable in extreme environments.

Prohibited Uses of Thermal Shock Test Chambers

To ensure the safety of both the equipment and operators, thermal shock test chambers must not be used for the following purposes:

  • Testing or storing flammable, explosive, or volatile substances

  • Testing or storing corrosive materials

  • Testing or storing biological samples

  • Testing or storing items that generate strong electromagnetic radiation

Why Thermal Shock Testing Matters

Thermal shock testing plays a vital role in product development and quality control. Simulating extreme temperature changes, it allows potential material and product issues to be identified early, preventing safety hazards and economic losses that could result from material failure.

In the automotive industry, thermal shock testing helps confirm that engine components can perform reliably in both high and low temperatures, improving vehicle performance and safety. In electronics, it verifies that products can withstand temperature fluctuations without degrading or failing due to thermal stress.

Beyond these fields, thermal shock testing is also widely used in medical devices, aerospace, and building materials. Ensuring that equipment operates reliably in extreme environments is critical for safety and performance in these industries. For example, aerospace equipment and medical devices may experience sudden temperature shifts during use. Thermal shock tests simulate these conditions to verify real-world reliability and safety.

References: How Thermal Shock Testing Improves Semiconductor Reliability

Thermal shock test chambers are indispensable tools in modern industrial testing. They help engineers and manufacturers understand how materials and products behave under extreme temperature conditions, ensuring reliability and safety across a wide range of applications. Proper use of thermal shock testing can lead to higher product quality, stronger market competitiveness, and greater commercial success. As technology continues to advance and new applications emerge, thermal shock test chambers will remain essential in driving innovation and development across many industries.
