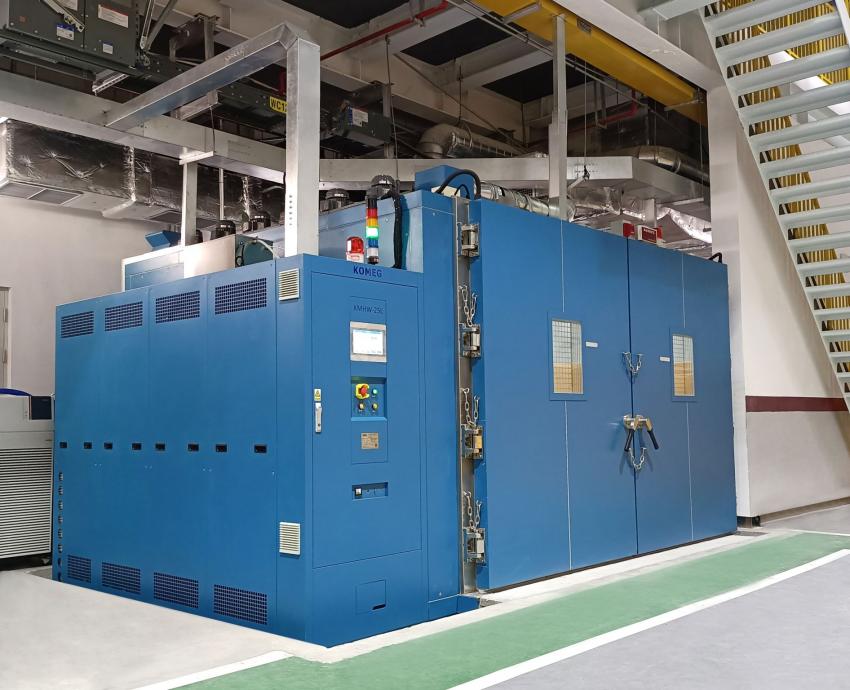

A Walk-In Environmental Test Chamber (also known as a Drive-In Chamber or Room-Sized Test Chamber) is a large-scale environmental testing facility that allows personnel to walk inside to place, monitor, or interact with oversized test specimens.
What it is:
Imagine a standard environmental test chamber scaled up to the size of a small room or even a garage. Unlike benchtop or reach-in chambers, where products are placed through a door, a walk-in chamber is a fully accessible room with its own temperature and humidity control systems, designed to test large products, assemblies, or multiple items simultaneously.
What it does:
Its primary function is to simulate extreme environmental conditions—temperature, humidity, and sometimes other factors like altitude or vibration—for large-scale testing. It allows engineers to evaluate how big products or complete systems perform under thermal stress without the constraint of limited internal space.
Key Features & How It Works:
Modular Construction: Most walk-in chambers are built using modular panel construction. The panels are typically made of formed steel with a high-density polyurethane foam core for superior insulation. This design allows for custom sizing and on-site assembly.
Accessibility: The defining feature is full access. A door (or sometimes multiple doors) large enough for a person to walk through is standard. Some even feature garage-style doors to drive vehicles or equipment directly inside.
Separate Equipment Housing: The refrigeration and HVAC (Heating, Ventilation, and Air Conditioning) unit is usually located remotely or on top of the chamber to save internal space and reduce noise/vibration inside the test area.
Air Circulation: Because of the large internal volume, powerful air handlers and ducting systems are used to ensure temperature and humidity uniformity throughout the entire room. Air is typically circulated through a plenum (often located behind a false wall or ceiling) and distributed via perforated panels.
Control & Monitoring: Like smaller chambers, they feature sophisticated programmable controllers. However, walk-in chambers often include additional safety features such as interior emergency stop buttons, alarms, and viewing windows from the outside.
Main Applications:
Automotive Industry: Testing entire vehicles, large battery packs, or full engine assemblies in simulated desert heat or arctic cold.
Aerospace: Evaluating aircraft fuselage sections, wing components, or large satellite assemblies under extreme temperature conditions.
Military & Defense: Conducting environmental tests on full-sized vehicles, weapon systems, or field equipment as required by military standards (e.g., MIL-STD-810).
Large Electronics & Appliances: Testing server racks, telecommunications cabinets, or large home appliances like refrigerators and HVAC units.
Materials & Construction: Evaluating the performance of building materials, insulation, or large composite structures under controlled temperature and humidity.
A Walk-In Environmental Test Chamber is a large-scale, room-sized environmental simulation facility designed to test oversized products, full assemblies, or multiple test specimens simultaneously under controlled temperature and humidity conditions, providing engineers with the space needed for comprehensive reliability testing.
What it is:
Imagine a standard environmental test chamber scaled up to the size of a small room or even a garage. Unlike benchtop or reach-in chambers, where products are placed through a door, a walk-in chamber is a fully accessible room with its own temperature and humidity control systems, designed to test large products, assemblies, or multiple items simultaneously.
What it does:
Its primary function is to simulate extreme environmental conditions—temperature, humidity, and sometimes other factors like altitude or vibration—for large-scale testing. It allows engineers to evaluate how big products or complete systems perform under thermal stress without the constraint of limited internal space.
Key Features & How It Works:
Modular Construction: Most walk-in chambers are built using modular panel construction. The panels are typically made of formed steel with a high-density polyurethane foam core for superior insulation. This design allows for custom sizing and on-site assembly.
Accessibility: The defining feature is full access. A door (or sometimes multiple doors) large enough for a person to walk through is standard. Some even feature garage-style doors to drive vehicles or equipment directly inside.
Separate Equipment Housing: The refrigeration and HVAC (Heating, Ventilation, and Air Conditioning) unit is usually located remotely or on top of the chamber to save internal space and reduce noise/vibration inside the test area.
Air Circulation: Because of the large internal volume, powerful air handlers and ducting systems are used to ensure temperature and humidity uniformity throughout the entire room. Air is typically circulated through a plenum (often located behind a false wall or ceiling) and distributed via perforated panels.
Control & Monitoring: Like smaller chambers, they feature sophisticated programmable controllers. However, walk-in chambers often include additional safety features such as interior emergency stop buttons, alarms, and viewing windows from the outside.
Main Applications:
Automotive Industry: Testing entire vehicles, large battery packs, or full engine assemblies in simulated desert heat or arctic cold.
Aerospace: Evaluating aircraft fuselage sections, wing components, or large satellite assemblies under extreme temperature conditions.
Military & Defense: Conducting environmental tests on full-sized vehicles, weapon systems, or field equipment as required by military standards (e.g., MIL-STD-810).
Large Electronics & Appliances: Testing server racks, telecommunications cabinets, or large home appliances like refrigerators and HVAC units.
Materials & Construction: Evaluating the performance of building materials, insulation, or large composite structures under controlled temperature and humidity.
A Walk-In Environmental Test Chamber is a large-scale, room-sized environmental simulation facility designed to test oversized products, full assemblies, or multiple test specimens simultaneously under controlled temperature and humidity conditions, providing engineers with the space needed for comprehensive reliability testing.
