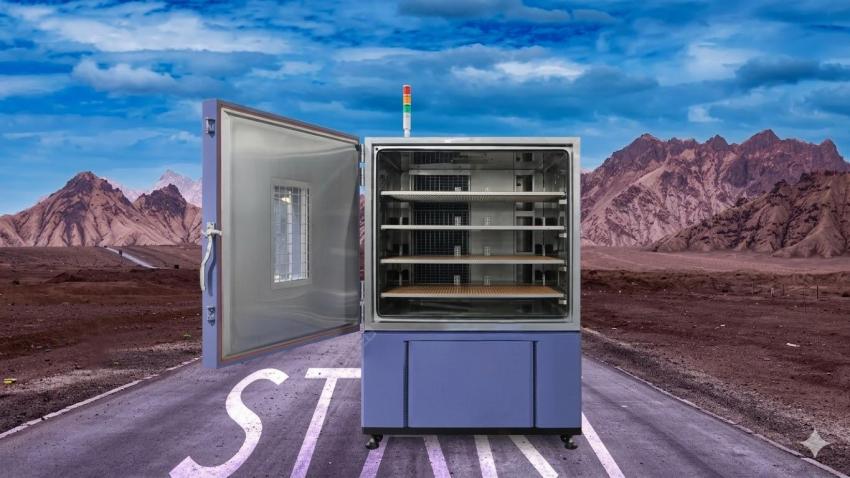

In environmental test chambers, airflow design is a core factor determining equipment performance. It directly affects temperature uniformity and humidity control precision within the chamber, which in turn determines the reliability and repeatability of test results.
1. Basic Components of an Airflow System
The airflow system of an environmental test chamber typically consists of a circulation fan, air duct structure, air deflectors, supply air outlets, return air inlets, and temperature and humidity conditioning components such as evaporators, heaters, and humidifiers. The basic airflow path is as follows: the fan drives air sequentially through heating or cooling components and humidifying or dehumidifying components, then through the duct and supply outlets into the working area. After exchanging heat and moisture with the test specimens, the air returns to the fan through the return inlets, forming a closed-loop circulation.
The efficiency and uniformity of this circulation directly determine the quality of temperature and humidity distribution within the chamber.
2. Impact of Airflow Design on Temperature Uniformity
Temperature uniformity refers to the maximum deviation between temperatures at different locations within the chamber and the setpoint value. Airflow design is the most critical factor affecting this.
Duct Structure Determines Temperature Distribution Patterns
Different duct designs produce different temperature distribution characteristics. Single-sided horizontal supply has a simple structure, but temperatures are lower near the supply outlet and higher farther away, easily creating a temperature gradient. Left-right dual-sided supply significantly improves temperature distribution and is the common solution for small and medium-sized chambers. Rear vertical supply achieves the most uniform temperature field and is suitable for stability test chambers with high precision requirements.
Balancing Air Velocity and Volume
Excessively low air velocity leads to slow air movement, reduced heat exchange efficiency, and stratification of hot and cold air. Excessively high air velocity, while beneficial for uniformity, may physically interfere with lightweight test specimens. The typical design keeps working area air velocity between 0.5 and 2.0 meters per second, using the lowest possible velocity while meeting uniformity requirements.
Practical Impact of Specimen Placement
The most easily overlooked issue in actual use is how specimen placement blocks airflow. Specimens placed too densely or with excessive size can create localized dead zones where air cannot circulate, significantly increase temperature differences between upstream and downstream areas, and extend temperature recovery time. The correct practices are to maintain at least 10 to 15 centimeters of clearance between specimens and chamber walls, leave airflow paths between specimens, and avoid concentrating high-heat-dissipation specimens in one area.
3. Impact of Airflow Design on Humidity Control
Humidity control is more complex than temperature control because it involves mass transfer between vapor and liquid phases. Airflow design plays a critical role in this process.
Humidity Distribution and Airflow Short-Cycling
During humidification, water vapor must mix evenly with air to achieve uniform humidity distribution. If the supply and return outlets are too close together or the duct design is unreasonable, some freshly conditioned air returns directly to the fan without fully circulating through the working area. This creates airflow short-cycling, which causes the humidity sensor reading to reach the setpoint quickly while other areas remain below specification, leading the control system to misjudge and terminate conditioning prematurely.
Condensation and Frosting Issues
Under low-temperature, high-humidity conditions, water vapor in the airflow may condense on chamber walls or specimen surfaces. At sub-zero temperatures, moisture frosts on the evaporator surface, gradually blocking the duct and reducing airflow, which then degrades both humidity control and temperature uniformity. Optimizing the air circulation path and ensuring uniform airflow across the evaporator surface are effective methods to mitigate these problems.
4. Airflow Design Characteristics of Different Chamber Types
Small benchtop chambers typically use a single-sided horizontal supply. The structure is simple, and temperature uniformity is acceptable under no-load conditions, but performance is sensitive to specimen placement. Vertical general-purpose chambers usually employ left-right dual-sided supply or rear vertical supply, achieving good uniformity suitable for most常规 tests. Walk-in chambers, due to their large internal volume, require multi-point supply and sometimes multiple fans working together, making uniformity the greatest challenge. Stability test chambers emphasize high uniformity under low air velocity conditions, typically using vertical laminar flow design to achieve temperature uniformity within ±1 degree Celsius.
5. How to Evaluate Airflow Design Quality
When selecting or accepting an environmental test chamber, evaluate airflow design quality through the following aspects.
Check the temperature uniformity specification, which should be clearly stated in the manufacturer's data sheet. Request temperature distribution test reports under both no-load and loaded conditions, reviewing the maximum deviations across multiple sensor points. Confirm whether the working area air velocity is specified and whether it meets your testing requirements. Examine the duct design for air deflectors or adjustable airflow direction devices. Inquire about door-open recovery time, which is an important indicator of overall airflow system performance.
6. Common Problems and Corrective Actions
When the temperature difference between upper and lower areas within the chamber is excessive, the cause is usually low air velocity or blocked airflow paths due to specimen placement. Increase fan speed or rearrange specimens. Temperature deviation near the door typically indicates airflow short-cycling at the door seal. Check seal integrity and adjust supply air direction. Unstable humidity with large fluctuations may result from airflow short-cycling or slow humidifier response. Optimize duct layout or inspect the humidification system. Severe frosting during low-temperature operation indicates uneven airflow distribution across the evaporator surface. Check fan operation and optimize the defrost cycle.
Airflow design in environmental test chambers is a core technical factor affecting both temperature uniformity and humidity control precision. Proper duct structure, appropriate air velocity, avoidance of short-cycling, and full consideration of loaded conditions are fundamental prerequisites for achieving high-precision environmental simulation. For users, understanding basic airflow principles, scientifically positioning test specimens, and regularly maintaining fans and ducts significantly improve test result reliability. For specifiers, temperature uniformity specifications, air velocity control capability, and recovery time are key parameters for judging the quality of a chamber's airflow design.
