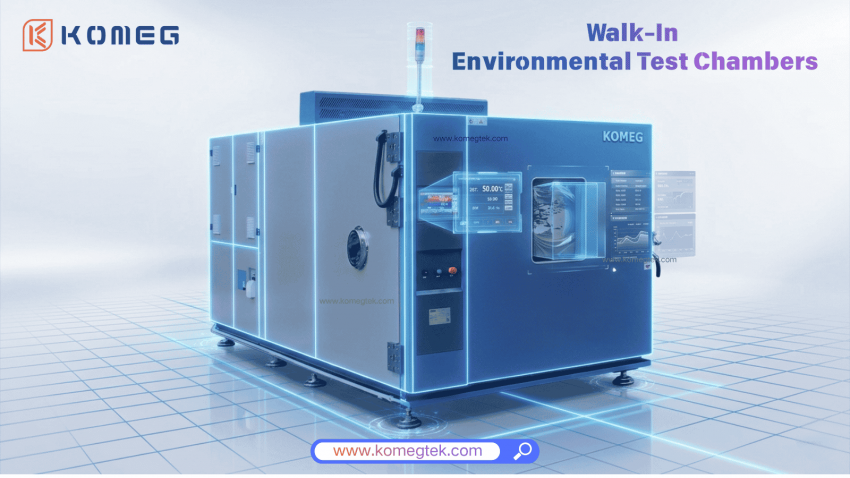

What Is a Walk-In Environmental Test Chamber?

A walk-in environmental test chamber is a large testing system designed to control temperature, humidity, and other environmental conditions inside a room-sized space. As the name suggests, these chambers are big enough for operators to walk into, making them ideal for testing large products, full assemblies, or multiple samples at once.

Unlike small benchtop chambers, walk-in chambers can handle:

• Large products and complete assemblies

• Automotive parts and EV battery packs

• Aerospace and defense equipment

• Multiple product batches at the same time

• Industrial machinery and systems

How Walk-In Chambers Work

Walk-in chambers use several key systems working together to maintain precise conditions throughout the space:

Refrigeration system – Removes heat to create low temperatures, using mechanical compression or cascade refrigeration.

Heating system – Raises the temperature for high-temperature tests using industrial heaters and PID control.

Humidity control system – Maintains controlled moisture levels through humidification and dehumidification.

Air circulation system – Evenly distributes conditioned air to avoid hot or cold spots.

Insulation structure – Uses modular panels with materials like polyurethane foam to keep thermal stability.

Control system – Uses PID controllers and touch screens for real-time monitoring and programming.

Types of Walk-In Chambers

Temperature chambers – Perform high and low temperature tests without humidity control, suitable for thermal aging and material testing.

Temperature humidity chambers – Combine temperature and humidity control for comprehensive climate testing.

Environmental stress screening (ESS) chambers – Quickly cycle products through thermal stress to find defects early, used in electronics and military equipment testing.

Thermal cycle chambers – Repeatedly expose products to alternating high and low temperatures for fatigue testing.

Altitude chambers – Simulate low-pressure, high-altitude environments for aerospace and drone testing.

Battery testing chambers – Specialized for EV battery packs and energy storage, with explosion-proof designs and fire suppression systems.

Structural Configurations

Modular (assembled) chambers – Use interlocking panels for easy transport and on-site assembly. Good when access is limited or future expansion may be needed.

Welded (integral) chambers – Fully welded for better durability and performance, offering wider temperature ranges and faster change rates.

Key Performance Specifications

Typical temperature ranges go from -70°C up to +180°C, with some special units reaching +250°C. Humidity ranges are usually 10% to 98% relative humidity. Temperature uniformity is typically within ±2.0°C, with fluctuation under ±0.5°C. Humidity fluctuation stays within ±2.5%. Internal volume can range from 4 cubic meters up to 260 cubic meters or more.

Common standard sizes include 4 m³ (2000×2000×1000 mm), 8 m³ (2000×2000×2000 mm), 15 m³ (2500×3000×2000 mm), and 45 m³ (5000×3000×3000 mm).

Industries and Applications

Automotive – Testing EV systems, batteries, sensors, and full vehicle climate performance.

Aerospace & defense – Validating aircraft components, avionics, military equipment, and drones under extreme conditions.

Electronics & semiconductors – IC package validation, burn-in testing, and reliability aging.

Pharmaceuticals – Drug stability studies and storage condition testing.

Renewable energy – Testing solar panels and battery storage systems.

Telecommunications – Infrastructure equipment validation.

Customization Options

Most manufacturers offer many customization options, including:

• Access ports and cable ports

• Heavy floor loading capacity

• Variable wall thickness for different insulation needs

• Noise reduction packages

• Multiple door configurations (including drive-in for vehicles)

• Observation windows with defogging

• Explosion-proof features for battery testing

• LN₂ boost for rapid cooling

• Remote monitoring and control

• Compliance with industry standards such as IEC, MIL-STD, or GB/T

Energy Efficiency Considerations

Because walk-in chambers are large, they can use significant energy. Modern systems include:

• Variable-frequency compressors for intelligent power adjustment

• Double-layer vacuum insulation to reduce heat loss

• Low-GWP refrigerants that meet environmental regulations

• Energy-saving airflow systems

• Waste heat recovery in high-end models

Advanced technologies can save up to 40% in energy compared to traditional equipment.

Industry Standards

Walk-in chambers are commonly used for testing to international standards, including:

• IEC 60068 – Environmental testing

• MIL-STD-810 – US military environmental test methods

• ISO 16750 – Road vehicle environmental testing

• GB/T 2423 – Chinese basic environmental testing procedures

• JEDEC – Semiconductor reliability standards

• AEC-Q100 – Automotive electronics reliability

Typical Applications by Chamber Type

Temperature chambers are mainly used for thermal aging, material testing, and component validation. Temperature humidity chambers are ideal for electronics, semiconductor reliability, and corrosion testing. ESS chambers are used for defect detection in electronics manufacturing. Thermal cycle chambers serve thermal fatigue testing, automotive parts, and semiconductor packages. Altitude chambers are designed for aerospace, aviation systems, and drone testing. Battery chambers focus on EV battery packs, energy storage systems, and lithium battery safety testing.

How to Choose the Right Walk-In Chamber

Selecting the right walk-in chamber depends on several factors:

1. Product size and volume – How much space do you need?

2. Temperature range requirements – Match your industry standards.

3. Humidity requirements – Do you need moisture control?

4. Cooling or heating rate – Faster rates require more advanced systems.

5. Test standards compliance – Make sure the chamber meets relevant certifications.

6. Safety requirements – Especially important for battery or hazardous material testing.

7. Installation space – Consider the chamber footprint and maintenance access.

8. Energy consumption – Think about long-term operating costs.

9. Future expansion needs – Modular designs offer more flexibility.

Walk-In vs. Benchtop Chambers

Benchtop chambers are compact, fit on lab benches, handle small batches or single samples, are portable, easy to install, and budget-friendly. Walk-in chambers are room-sized, need dedicated floor space, handle large volumes or full assemblies, are fixed installations requiring professional setup, and cost more to invest in.

Future Trends

Environmental testing technology continues to advance with:

• Intelligent automation and remote monitoring

• AI-based diagnostics and predictive maintenance

• Energy-efficient refrigeration systems

• Eco-friendly refrigerants with low global warming potential

• Smart airflow optimization

• Advanced safety systems for battery and high-risk testing

Walk-in environmental test chambers are essential for large-scale product reliability testing across many industries. From automotive systems and aerospace components to batteries and electronics, these chambers provide the controlled environments needed for accurate real-world testing. When choosing a walk-in chamber, carefully evaluate your specific test requirements against the available specifications, customization options, and long-term operating costs to find the right fit for your application.
