What Is Thermal Shock Testing?

Thermal shock testing is a reliability test used to evaluate how a material, component, or finished product responds to sudden changes in temperature. Instead of exposing a sample to gradual heating or cooling, thermal shock testing subjects it to rapid transitions between high and low temperatures. This creates mechanical and thermal stress that can reveal weaknesses not easily found under normal temperature cycling.

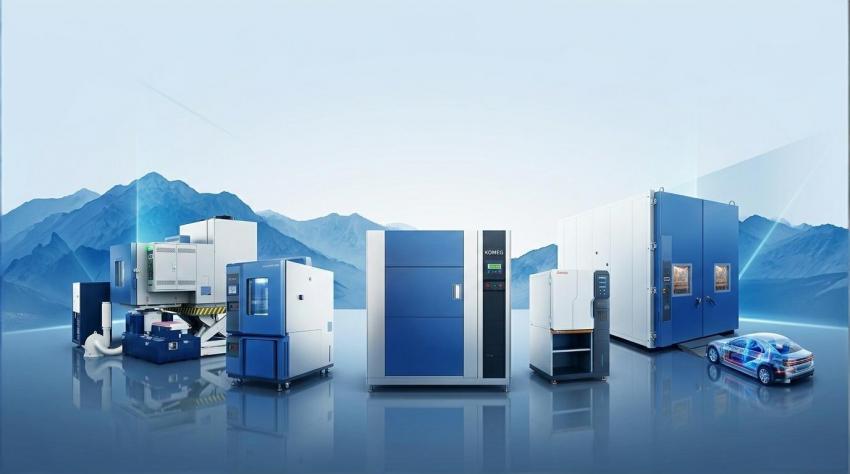

A Thermal Shock Chamber is commonly used to perform this type of test. It provides controlled high-temperature and low-temperature environments, allowing samples to experience rapid temperature changes under repeatable test conditions.

What Thermal Shock Means

Thermal shock occurs when a material experiences a rapid temperature change that causes uneven expansion or contraction. Different materials expand and contract at different rates. Even within a single material, the surface and internal structure may heat or cool at different speeds.

This difference can create internal stress. If the stress exceeds the strength of the material or assembly, damage may occur. Typical results include cracking, warping, delamination, solder joint failure, seal failure, loss of electrical continuity, or changes in mechanical properties.

How Thermal Shock Testing Works

In a thermal shock test, the sample is repeatedly exposed to two or more temperature extremes. A common method is to move the test sample between a high-temperature zone and a low-temperature zone within a short transfer time. This process is usually carried out inside a Thermal Shock Chamber, which is designed to control temperature zones and transition time accurately.

For example, a component may be held at a high temperature for a defined period, then quickly transferred to a low-temperature environment and held there again. This process is repeated for a specified number of cycles.

The main stages usually include:

• High-temperature exposure
• Rapid transfer or temperature transition
• Low-temperature exposure
• Repeated cycling
• Inspection and performance evaluation

The exact temperature range, dwell time, transfer time, and number of cycles depend on the product type, material characteristics, application environment, and applicable test standard.

Types of Thermal Shock Testing

Thermal shock testing can be performed in different ways depending on the test purpose and equipment design.

Air-to-Air Thermal Shock Testing

Air-to-air thermal shock testing uses hot and cold air chambers. The sample is transferred between two temperature zones, or air flow is controlled to create rapid temperature changes. Many Thermal Shock Chamber systems are based on this air-to-air method. This type of equipment is widely used for electronic components, assemblies, and general industrial products.

Liquid-to-Liquid Thermal Shock Testing

Liquid-to-liquid thermal shock testing involves immersing the sample in hot and cold liquids. Because liquids transfer heat more efficiently than air, this method creates more severe and rapid thermal stress. It is often used for materials or components that can safely tolerate immersion.

Single-Chamber Rapid Temperature Change Testing

In some cases, a single chamber is used to change temperature rapidly without physically moving the sample. Although this may be referred to as rapid temperature cycling rather than classic thermal shock, it is still useful for assessing how products respond to fast temperature transitions.

What Thermal Shock Testing Evaluates

Thermal shock testing is used to examine both visible and hidden failure modes. Evaluation may include physical inspection, dimensional measurement, electrical testing, functional testing, or microscopic analysis.

Common evaluation items include:

• Cracks in materials or coatings
• Deformation or warping
• Separation between bonded layers
• Solder joint fatigue
• Connector or terminal failure
• Seal leakage
• Electrical resistance changes
• Loss of insulation performance
• Functional instability
• Changes in strength or appearance

The test not only determines whether a product fails immediately. It can also help identify early-stage damage that may lead to failure after continued use.

Why Thermal Shock Testing Is Important

Products are often exposed to temperature changes in real environments. These changes may occur during outdoor use, transportation, startup and shutdown, altitude changes, industrial processing, or contact with hot and cold surfaces.

Thermal shock testing helps engineers understand whether the product design and materials are suitable for such conditions. It can also support failure analysis, design verification, material comparison, and quality control.

The test is particularly important when a product contains multiple materials, such as metal, plastic, glass, ceramic, adhesive, coating, or solder. Differences in thermal expansion between these materials can create stress at interfaces and joints.

Common Applications

Thermal shock testing is used across many industries and product categories, including:

• Electronic components
• Printed circuit boards
• Semiconductor devices
• Batteries and power modules
• Automotive parts
• Aerospace components
• Optical devices
• LED products
• Sensors and connectors
• Medical devices
• Ceramics and glass materials
• Coatings and adhesives
• Plastic and composite parts

For example, electronic assemblies may be tested in a Thermal Shock Chamber to assess solder joint reliability. Automotive components may be evaluated for exposure to cold outdoor temperatures and high engine-area temperatures. Ceramic or glass materials may be tested because they are especially sensitive to sudden temperature changes.

Important Test Parameters

A thermal shock test must be clearly defined to produce meaningful results. The most important parameters include:

• Upper temperature limit
• Lower temperature limit
• Dwell time at each temperature
• Transfer time between temperature zones
• Number of cycles
• Sample orientation and loading condition
• Recovery time before inspection
• Pass/fail criteria
• Measurement methods before and after testing

Small changes in these parameters can significantly affect test severity. For this reason, test conditions should be selected based on real operating environments, product requirements, or recognized standards. A properly configured Thermal Shock Chamber helps maintain stable and repeatable test parameters.

Common Thermal Shock Testing Standards

Several international and industry standards include methods for thermal shock or temperature change testing. Common examples include:

• IEC 60068-2-14
• MIL-STD-810
• MIL-STD-883
• JESD22-A104
• JESD22-A106
• ASTM and ISO methods related to specific materials or products

The choice of standard depends on the product category, industry requirements, and purpose of the test. Some standards focus on electronic components, while others apply to environmental testing, military equipment, materials, or finished products.

Difference Between Thermal Shock and Temperature Cycling

Thermal shock testing and temperature cycling are related but not identical.

Thermal shock testing emphasizes rapid temperature transition. The key stress comes from the sudden change between temperature extremes, often achieved with a Thermal Shock Chamber.

Temperature cycling usually involves slower, controlled changes in temperature over time. It is often used to evaluate fatigue, aging, and long-term reliability under repeated heating and cooling.

In simple terms, thermal shock is generally more abrupt, while temperature cycling is more gradual. Both methods can be useful, but they reveal different types of reliability issues.

Limitations of Thermal Shock Testing

Thermal shock testing is a valuable tool, but it does not represent every possible real-world condition. A test may be more severe or less severe than actual use, depending on the selected parameters.

Some limitations include:

• Test results depend heavily on the temperature range and transfer time
• Accelerated stress may not perfectly match natural aging
• Some failure modes require additional humidity, vibration, pressure, or mechanical load testing
• Passing one thermal shock test does not guarantee performance under all environments
• Improper test setup may produce misleading results

For this reason, thermal shock testing is often used together with other environmental and mechanical tests.

Thermal shock testing is a method for evaluating how products and materials respond to sudden temperature changes. By exposing samples to repeated high- and low-temperature extremes, usually inside a Thermal Shock Chamber, the test can reveal cracks, deformation, interface failure, electrical problems, and other reliability risks.

References: What Is Thermal Shock Testing? Principles, Standards, Applications, and Equipment Guide

A well-designed thermal shock test helps engineers understand material behavior, verify design robustness, and assess whether a product is suitable for environments with rapid temperature changes. Its value depends on choosing appropriate test conditions, using relevant standards, and interpreting the results in the context of actual product use.
