As lithium-ion batteries become the backbone of electric vehicles, consumer electronics, and energy storage systems, ensuring their safety and reliability under extreme conditions has never been more critical. The Battery Temperature Cycle Test Chamber is the essential equipment designed specifically for this purpose, simulating real-world temperature fluctuations to validate battery performance and compliance with international safety standards.
This article provides a detailed overview of what a battery temperature cycle test chamber is, its key features, technical specifications, and the industries that rely on it.
What is a Battery Temperature Cycle Test Chamber?
A Battery Temperature Cycle Test Chamber is a specialized environmental test system used to subject batteries (cells, modules, or packs) to repeated and controlled temperature changes. Unlike standard thermal chambers, these units are engineered with unique safety mechanisms to handle the potential risks associated with battery testing, such as thermal runaway, fire, or explosion.
The primary goal is to evaluate how batteries behave under temperature stress. This includes assessing:
Cycle Life: How charge/discharge capacity degrades after multiple temperature cycles.
Thermal Stability: The battery's ability to avoid overheating during rapid temperature shifts.
Safety Compliance: Meeting standards like UN 38.3 (transportation safety), IEC 62660-2, and GB 38031-2024.
Key Features and Specifications
When selecting a temperature cycle test chamber for batteries, there are several critical parameters and safety features to consider.
1. Temperature Performance
Standard chambers typically offer a wide temperature range to cover extreme application scenarios.
Common Range: -70°C to +150°C or up to +180°C.
Cooling Rates: Usually average 1°C to 3°C per minute, though rapid-rate systems are available for thermal shock tests.
Uniformity: High-quality chambers maintain temperature uniformity of ≤ ±2.0°C to ensure all battery cells experience the same conditions.
2. Humidity Control
For testing corrosion or exposure to moist environments, many chambers include humidity control features.
Range: Typically 20% RH to 98% RH, with some advanced units supporting low-humidity tests down to 10% RH.
3. Safety-Centric Design
This is the most crucial differentiator between a standard chamber and a battery-specific one.
Explosion Proofing: Reinforced stainless steel interiors and pressure relief devices to contain explosions.
Fire Suppression: Integrated CO2 or nitrogen purge systems to extinguish fires immediately if a battery enters thermal runaway.
Gas Detection: Sensors for smoke, CO, and H2 (hydrogen) to provide early warnings of battery venting.
Emergency Cutoff: Automatic power shutdown upon detection of abnormal conditions.
4. Integration with Battery Cyclers
Modern chambers are not just ovens; they are integrated test systems.
Data Acquisition: Real-time logging of voltage, current, and temperature via protocols like CAN/Modbus or LabVIEW APIs.
Multi-Area Control: Advanced chambers feature independent temperature control for multiple zones, compensating for the heat generated by the batteries themselves during charge/discharge cycles.
Why Standard Chambers Fall Short
A common mistake is using a standard temperature chamber for battery cycling. Research highlights a significant flaw in this approach: batteries generate their own heat.
When a standard thermal chamber is set to 20°C and a battery is cycled at a high rate (e.g., 2C discharge), the battery‘s internal temperature can spike to 55°C—a deviation of 35°C from the set point. This self-heating accelerates reaction kinetics, leading to inaccurate calculations of battery capacity, State of Health (SOH), and longevity. It can also mask dangerous thermal runaway precursors.
Battery-specific chambers or calorimeters are required to manage this “self-generated” heat, using features like multi-area control or direct specimen temperature control to maintain the battery’s surface at the target temperature during actual operation.
Applications Across Industries
Battery temperature cycling chambers are vital for R&D, quality assurance, and certification labs across several sectors.
Industry Application Example Relevant Standard
Automotive (EV) Testing EV battery pack durability under arctic or desert climates (e.g., 1,000+ cycles at -30°C) GB 38031-2024
Consumer Electronics Validating fast-charge safety for smartphones/drones at high temps (e.g., 45°C/95% RH) IEC 62133
Energy Storage (ESS) Stability tests for grid-scale batteries in extreme weather UL 9540A
Aerospace & Defense Qualifying aviation batteries for altitude/pressure changes DO-311A / MIL-STD-810H
Transport & Logistics Ensuring shipping safety for lithium batteries UN 38.3
Conclusion
The Battery Temperature Cycle Test Chamber is a non-negotiable asset for any manufacturer or lab serious about battery safety. It goes far beyond simple heating and cooling, offering a controlled environment that manages thermal runaway risks, integrates with electrical testing equipment, and ensures the battery's internal chemistry remains stable under duress.
When shopping for a chamber, prioritize safety features (explosion relief, fire suppression) and thermal management precision (multi-area control) over just size and price. As battery technology evolves toward higher energy densities, the role of rigorous temperature cycling will only become more vital.
This article provides a detailed overview of what a battery temperature cycle test chamber is, its key features, technical specifications, and the industries that rely on it.
What is a Battery Temperature Cycle Test Chamber?
A Battery Temperature Cycle Test Chamber is a specialized environmental test system used to subject batteries (cells, modules, or packs) to repeated and controlled temperature changes. Unlike standard thermal chambers, these units are engineered with unique safety mechanisms to handle the potential risks associated with battery testing, such as thermal runaway, fire, or explosion.
The primary goal is to evaluate how batteries behave under temperature stress. This includes assessing:
Cycle Life: How charge/discharge capacity degrades after multiple temperature cycles.
Thermal Stability: The battery's ability to avoid overheating during rapid temperature shifts.
Safety Compliance: Meeting standards like UN 38.3 (transportation safety), IEC 62660-2, and GB 38031-2024.
Key Features and Specifications
When selecting a temperature cycle test chamber for batteries, there are several critical parameters and safety features to consider.
1. Temperature Performance
Standard chambers typically offer a wide temperature range to cover extreme application scenarios.
Common Range: -70°C to +150°C or up to +180°C.
Cooling Rates: Usually average 1°C to 3°C per minute, though rapid-rate systems are available for thermal shock tests.
Uniformity: High-quality chambers maintain temperature uniformity of ≤ ±2.0°C to ensure all battery cells experience the same conditions.
2. Humidity Control
For testing corrosion or exposure to moist environments, many chambers include humidity control features.
Range: Typically 20% RH to 98% RH, with some advanced units supporting low-humidity tests down to 10% RH.
3. Safety-Centric Design
This is the most crucial differentiator between a standard chamber and a battery-specific one.
Explosion Proofing: Reinforced stainless steel interiors and pressure relief devices to contain explosions.
Fire Suppression: Integrated CO2 or nitrogen purge systems to extinguish fires immediately if a battery enters thermal runaway.
Gas Detection: Sensors for smoke, CO, and H2 (hydrogen) to provide early warnings of battery venting.
Emergency Cutoff: Automatic power shutdown upon detection of abnormal conditions.
4. Integration with Battery Cyclers
Modern chambers are not just ovens; they are integrated test systems.
Data Acquisition: Real-time logging of voltage, current, and temperature via protocols like CAN/Modbus or LabVIEW APIs.
Multi-Area Control: Advanced chambers feature independent temperature control for multiple zones, compensating for the heat generated by the batteries themselves during charge/discharge cycles.
Why Standard Chambers Fall Short
A common mistake is using a standard temperature chamber for battery cycling. Research highlights a significant flaw in this approach: batteries generate their own heat.
When a standard thermal chamber is set to 20°C and a battery is cycled at a high rate (e.g., 2C discharge), the battery‘s internal temperature can spike to 55°C—a deviation of 35°C from the set point. This self-heating accelerates reaction kinetics, leading to inaccurate calculations of battery capacity, State of Health (SOH), and longevity. It can also mask dangerous thermal runaway precursors.
Battery-specific chambers or calorimeters are required to manage this “self-generated” heat, using features like multi-area control or direct specimen temperature control to maintain the battery’s surface at the target temperature during actual operation.
Applications Across Industries
Battery temperature cycling chambers are vital for R&D, quality assurance, and certification labs across several sectors.
Industry Application Example Relevant Standard
Automotive (EV) Testing EV battery pack durability under arctic or desert climates (e.g., 1,000+ cycles at -30°C) GB 38031-2024
Consumer Electronics Validating fast-charge safety for smartphones/drones at high temps (e.g., 45°C/95% RH) IEC 62133
Energy Storage (ESS) Stability tests for grid-scale batteries in extreme weather UL 9540A
Aerospace & Defense Qualifying aviation batteries for altitude/pressure changes DO-311A / MIL-STD-810H
Transport & Logistics Ensuring shipping safety for lithium batteries UN 38.3
Conclusion
The Battery Temperature Cycle Test Chamber is a non-negotiable asset for any manufacturer or lab serious about battery safety. It goes far beyond simple heating and cooling, offering a controlled environment that manages thermal runaway risks, integrates with electrical testing equipment, and ensures the battery's internal chemistry remains stable under duress.
When shopping for a chamber, prioritize safety features (explosion relief, fire suppression) and thermal management precision (multi-area control) over just size and price. As battery technology evolves toward higher energy densities, the role of rigorous temperature cycling will only become more vital.
References: Battery Temperature Cycle Test Chamber: A Complete Guide to Battery Thermal Cycling Testing

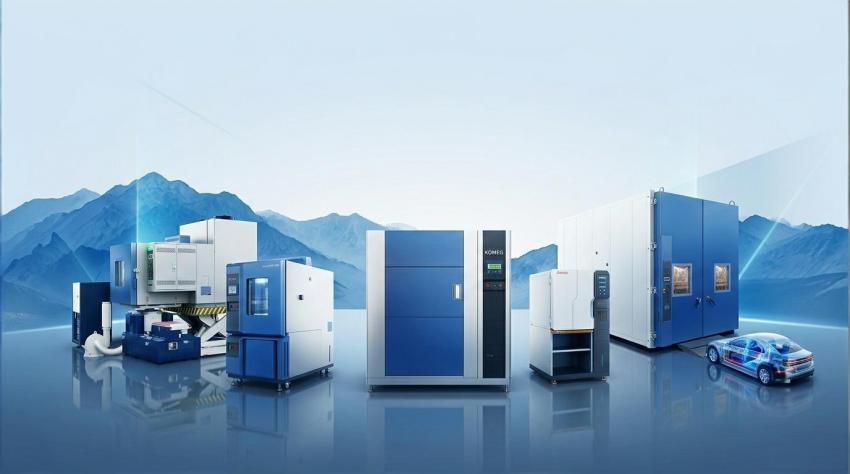

Looking for a reliable solution? KOMEG offers a comprehensive range of battery test chambers, from 150L benchtop units to large walk-in rooms, designed with advanced safety systems to meet 2026 global testing standards.
