Hydrogen fuel cell stack assembly process

Hydrogen Fuel Cell is known as the "ultimate clean energy" of the 21st century. The assembly process of Hydrogen Fuel Cell Stack determines the performance and life of the fuel cell. The Hydrogen Fuel Cell Fabrication Machine is becoming the key infrastructure of the hydrogen energy industry chain.

1. Basic Structure of Fuel Cell Stack

A typical proton exchange membrane fuel cell (PEMFC) stack consists of multiple unit cells:

1. Bipolar Plate (BPP): Graphite or metal bipolar plate, providing gas distribution and current collection.
2. Membrane Electrode Assembly (MEA): Proton exchange membrane + catalyst layer + gas diffusion layer.
3. Gasket: Ensure airtightness between unit cells.
4. End Plate: Clamp the entire stack.

2. Key Process of Fuel Cell Stack Assembly

5. Bipolar plate pretreatment: Metal bipolar plates need coating treatment (carbon coating, gold coating) to improve corrosion resistance.
6. Gasket dispensing: Use two-component sealant to accurately coat the sealing groove to ensure airtightness.
7. MEA cutting and alignment: Cut the MEA into precise dimensions and position it accurately.
8. Stack press-fit: Stack in a predetermined order and apply uniform pressure in a dust-free environment.
9. Airtightness detection: Helium mass spectrometer leak detection to ensure leakage rate ≤ 1×10⁻⁸ Pa·m³/s.
10. Activation test: Pass hydrogen gas for the first time to activate the catalyst and record the performance curve.

3. Core Requirements of Hydrogen Fuel Cell Fabrication Machine

11. Cleanliness: Assembly environment cleanliness ISO Class 7 or higher.
12. Dispensing accuracy: Sealant dispensing accuracy ±0.05 mm.
13. Press-fit force control: Stack press-fit force accuracy ±1%.
14. Traceability: Each bipolar plate and MEA has a unique ID.
15. Explosion-proof requirements: Equipment in hydrogen environment needs to pass Ex explosion-proof certification.

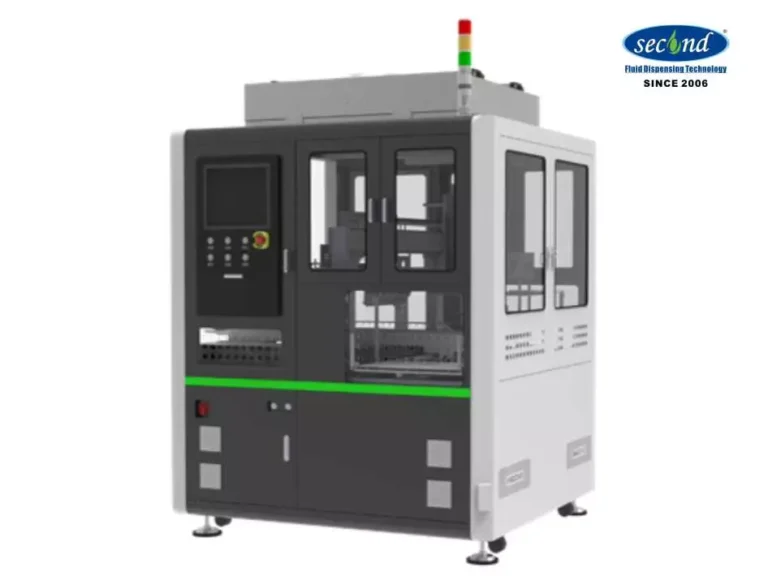

The Shenzhen Second Intelligent Equipment Hydrogen Fuel Cell Fabrication Machine is the key equipment in the hydrogen energy industry chain. From sealing dispensing to stack press-fitting, from MEA alignment to airtightness detection, every step of the process requires the support of precision equipment and rigorous processes. Under the "dual carbon" goal, the hydrogen energy industry is accelerating development, and mastering high-quality fuel cell manufacturing equipment and technical capabilities will be the key competitiveness in the hydrogen energy era.
