Resistance spot welding is one of the most widely adopted metal joining processes in modern manufacturing, especially in high-volume production environments such as automotive, electrical appliance manufacturing, and precision sheet metal fabrication. It is valued for its speed, repeatability, low distortion, and automation compatibility, making it a core technology for OEMs and Tier-1 suppliers.
As a global leader in industrial welding and metal-joining solutions, Heron Welder delivers advanced resistance welding systems including MFDC spot welding machines, projection welders, and automated production lines designed to meet demanding industrial requirements with high precision and efficiency.

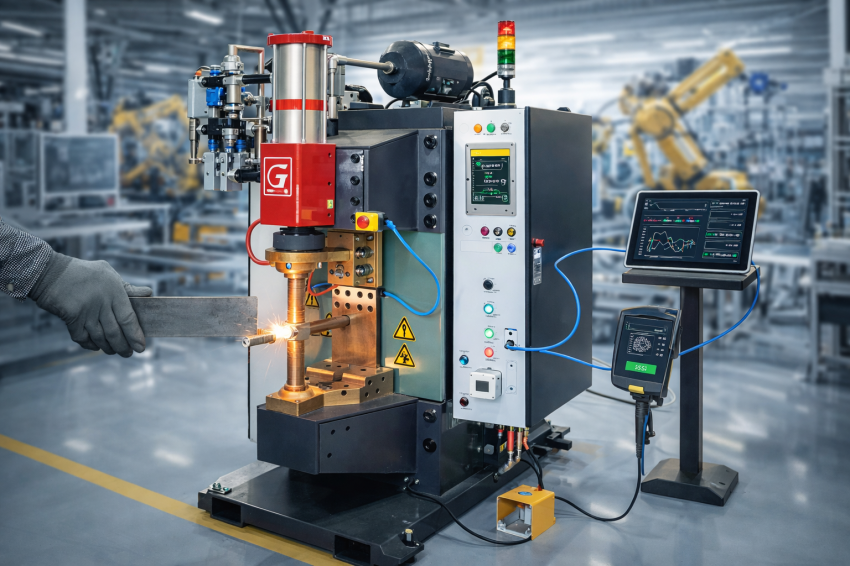

What is Resistance Spot Welding?
Resistance spot welding RSW) is a fusion welding process in which two or more metal sheets are joined by applying pressure and passing a high electric current through localized contact points.
The process relies on Joule heating (I²Rt principle), where heat is generated due to electrical resistance at the interface of the workpieces. This localized heat melts the metal, forming a weld “nugget” that solidifies under pressure.
Typically, two copper alloy electrodes clamp the sheets together while current flows through the contact area for a very short duration (milliseconds to seconds). Once the current stops, the molten metal solidifies, forming a strong joint.
Working Principle of Resistance Spot Welding
The resistance spot welding process consists of four key stages:
1. Electrode Clamping
Copper alloy electrodes apply mechanical force, ensuring tight contact between the metal sheets.
2. Current Application
A high current passes through the workpieces, concentrating heat at the contact interface due to resistance.
3. Nugget Formation
The localized heat melts the metal, forming a molten weld pool known as the weld nugget.
4. Solidification
After the current stops, pressure is maintained until the weld solidifies, forming a strong joint.
This precise, time-controlled process enables consistent welding quality, especially in automated production environments.
Types of Resistance Spot Welding Technologies
Modern industrial production uses several variations of spot welding technology depending on application needs:
MFDC Spot Welding
Medium Frequency Direct Current (MFDC) systems provide stable current control, faster response, and improved energy efficiency. These systems are widely used in automotive body-in-white production for high-quality weld consistency.
Capacitor Discharge Spot Welding
This method delivers energy in a very short pulse, making it suitable for sensitive or thin materials requiring minimal heat input.
Projection Welding
Uses pre-formed projections on the workpiece to concentrate heat at defined points, ideal for fast, repeatable multi-point welding.
Key Advantages of Resistance Spot Welding
Resistance spot welding offers several industrial advantages:
- High production speed suitable for mass manufacturing
- Automation-friendly process easily integrated into robotic lines
- No filler materials required, reducing cost
- Low thermal distortion, preserving material properties
- Clean operation with minimal fumes or spatter
- Repeatable weld quality in controlled systems
These benefits make it especially attractive for industries where productivity and consistency are critical.
Limitations and Challenges
Despite its advantages, resistance spot welding has certain limitations:
- Primarily suitable for thin sheet metals
- Requires precise parameter control current, time, pressure)
- Electrode wear over time affects consistency
- Limited direct inspection methods for weld quality
- Joint design constraints (lap joints required)
Advanced systems like MFDC welding and real-time monitoring help mitigate many of these challenges in modern production environments.
Industrial Applications of Resistance Spot Welding
Resistance spot welding is widely used across multiple industries:
Automotive Manufacturing
Used extensively in body-in-white assembly for doors, chassis, roof panels, and structural reinforcements.
Electrical and Electronics
Ideal for battery tabs, connectors, and small conductive components.
Home Appliance Manufacturing
Used in refrigerators, washing machines, and HVAC equipment assembly.
Aerospace and Rail Industry
Applied where lightweight sheet metal structures require precise joining.
Industrial Fabrication
Used for steel cabinets, enclosures, and structural sheet assemblies.
Quality Control in Spot Welding
Weld quality depends on controlling four critical parameters:
- Welding current
- Electrode force
- Welding time
- Electrode geometry and condition
Poor control can lead to defects such as expulsion, weak nuggets, or excessive indentation. Modern manufacturing facilities use closed-loop control systems and MFDC technology to maintain consistent weld quality across production lines.
Heron’s resistance welding systems integrate advanced monitoring and control technologies to ensure stable current output and repeatable performance in high-volume applications.
Resistance Spot Welding vs Other Welding Methods
Compared to traditional welding processes:
- Faster than TIG/MIG welding for sheet metal assembly
- More automation-ready than arc welding
- Lower heat distortion than fusion welding methods
- More cost-efficient for mass production
However, it is less suitable for thick materials or complex joint geometries, where arc-based welding may be required.
Best Practices for Industrial Spot Welding
To achieve optimal performance, manufacturers should follow these guidelines:
- Maintain clean electrode tips and work surfaces
- Optimize welding current and time based on material type
- Ensure proper electrode force calibration
- Use water-cooled electrodes for high-duty cycles
- Implement regular maintenance and electrode dressing
- Adopt MFDC systems for high-precision applications
These practices significantly improve weld strength, consistency, and production efficiency.
Why Choose Heron Welder for Resistance Spot Welding Solutions?
With decades of engineering expertise, Heron Welder provides advanced resistance welding systems designed for industrial-scale production.
Our solutions include:
- MFDC resistance spot welding machines
- Automated welding production lines
- Projection and seam welding systems
- Custom welding guns and controllers
- Integrated robotics welding solutions
Heron systems are engineered for precision, durability, and high-throughput manufacturing environments, helping OEMs and factories achieve consistent weld quality with reduced operational cost.
Frequently Asked Questions (FAQs)
1. What materials can be welded using resistance spot welding?
It is commonly used for steel, stainless steel, aluminum, and certain copper alloys, mainly in thin sheet form.
2. Is resistance spot welding suitable for automation?
Yes, it is one of the most automation-friendly welding processes and is widely used in robotic assembly lines.
3. What is the main factor affecting weld quality?
Weld quality depends primarily on current, pressure, time, and electrode condition.
4. Can spot welding replace MIG or TIG welding?
Not entirely. It is best for sheet metal mass production, while MIG/TIG is better for thicker or structural welds.
5. Why is MFDC technology important in spot welding?
MFDC systems provide precise current control, faster response, and improved weld consistency, especially in automotive manufacturing.
Conclusion
Resistance spot welding remains a cornerstone of modern industrial manufacturing due to its efficiency, speed, and adaptability to automation. As industries continue to demand higher productivity and tighter quality control, advanced welding systems are becoming essential.
With cutting-edge MFDC technology and customized automation solutions, Heron Welder empowers manufacturers to achieve reliable, high-quality spot welds across diverse industrial applications.
