A Co-Packaged Optics (CPO) Thermal Cycle Test Chamber is a specialized environmental testing system designed to validate the reliability and performance of co-packaged optical components under simulated temperature stress conditions. As the name suggests, these chambers enable precise thermal cycling—repeatedly subjecting CPO devices to alternating high and low temperatures—to evaluate their durability, signal integrity, and long-term stability.
Reference materials： What Is a Co-Packaged Optics Thermal Cycle Test Chamber?
Unlike generic thermal chambers, CPO-specific test systems are engineered to accommodate the unique requirements of integrated photonic-electronic packaging, where optical engines and switching silicon share a common substrate.
Why Co-Packaged Optics Require Specialized Thermal Testing
Co-packaged optics represent a paradigm shift in data center and high-performance computing architectures. By integrating optical I/O directly with the switching ASIC, CPO eliminates signal integrity issues associated with traditional pluggable optics. However, this integration creates new testing challenges:
Thermal-Mechanical Stress – The combination of silicon photonics, driver electronics, and fiber attach points within a single package creates complex thermal expansion mismatches. Temperature cycling can induce fiber buckling, solder joint fatigue, or alignment shifts that degrade optical coupling efficiency.
Attenuation Sensitivity – Optical fiber cables exhibit temperature-dependent attenuation changes, typically caused by buckling or tension due to differences in the thermal expansion rates of fibers, cable strength elements, and jacketing materials. In CPO applications where fibers are permanently attached to the package, this behavior must be characterized across the full operating temperature range.
Channel Count Requirements – CPO devices feature dozens or hundreds of optical I/O channels. Validating thermal reliability requires simultaneous monitoring of multiple channels during temperature cycling, which demands specialized multi-channel test capabilities.
Key Features of CPO Thermal Cycle Test Chambers
Temperature Performance
CPO thermal chambers typically offer temperature ranges from -40°C to +85°C, covering commercial and industrial operating requirements. Some configurations extend to -70°C for military or extended-range applications. Critical performance specifications include:
- Temperature Uniformity – Typically ≤ ±2.0°C throughout the test zone
- Temperature Fluctuation – Usually within ±0.5°C to ensure stable conditions
- Ramp Rates – Heating rates from 1 to 3°C per minute, cooling rates from 0.7 to 1°C per minute for standard systems
Multi-Channel Test Capability
A defining feature of CPO thermal cycling systems is their ability to test multiple optical channels simultaneously. Advanced systems offer 8, 16, or even 32-channel configurations, allowing comprehensive temperature evaluation of all I/O ports in parallel. This dramatically improves operational efficiency compared to single-channel testing.
Optical Integration
CPO thermal chambers integrate optical measurement capabilities directly into the test environment. This includes:
- Built-in light sources for continuous monitoring during thermal cycling
- Insertion loss and return loss measurement systems
- Real-time attenuation tracking across temperature ramps
- Fiber feedthrough ports maintain an environmental seal while allowing optical access
Stability for Precision Measurements
For accurate characterization of attenuation changes—often subtle in well-designed CPO packages—the chamber must provide exceptional temperature stability. Temperature slope stability ensures reliable and optimal performance validation of photonic circuits.
Industry Standards and Test Methods
CPO component testing typically references established reliability standards originally developed for passive fiber optic components, particularly Telcordia GR-1221-CORE. This standard specifies multiple test conditions relevant to CPO:
- Temperature Cycling Test (Section 6.2.7) – Requires air thermal shock from -40°C to 70°C, following Mil-Std 883 Method 1010. This test evaluates the component's ability to withstand repeated temperature extremes.
- High Temperature Storage (Sections 6.2.4–6.2.5) – Includes dry heat at 85°C and damp heat at 85°C/85% relative humidity for assessing long-term aging effects.
- Low Temperature Storage (Section 6.2.6) – Requires -40°C exposure to validate cold-start and low-temperature operation.
- Cyclic Moisture Resistance (Section 6.2.8) – Involves cycling between 25°C and 75°C at 85–95% relative humidity, with one -40°C cycle per five sub-cycles.
Applications in CPO Development
Device Characterization – During CPO development, thermal cycle chambers characterize how optical attenuation, polarization-dependent loss, and coupling efficiency vary with temperature. This data informs design margins and operating specifications.
Reliability Qualification – Before deployment in data center switches or high-performance computing systems, CPO modules must demonstrate reliability across thousands of thermal cycles. Testing simulates years of field operation in compressed timeframes.
Failure Mode Identification – Thermal cycling exposes latent defects including fiber alignment shifts, solder joint cracks, underfill delamination, and adhesive failures. Early identification enables design improvements before production.
Production Screening – For high-volume CPO manufacturing, thermal cycling serves as a screening step to identify infant mortality failures before shipment to customers.
Chamber Configurations
Compact Benchtop Systems – For R&D and prototyping environments where space is limited, compact thermal chambers measuring as small as 12.7 × 7.6 × 8.1 cm are available, offering temperature ranges from -30°C to 90°C. These systems are ideal for device characterization without the delays or space constraints of larger chambers.
Reach-In Chambers – Mid-sized chambers accommodate multiple CPO modules or complete test fixtures, suitable for engineering validation and low-volume production.
Multi-Channel Test Systems – Integrated systems like the Multifunctional Temperature Cycle Test System combine light sources, temperature control, RF signal sources, and multi-channel monitoring in a single platform. These are optimized for qualifying pigtailed photonic circuits including lithium niobate modulators, optical quantum chips, and photonic ICs.
How to Select a CPO Thermal Cycle Test Chamber
- Channel Count – Match the system's parallel test capability to your device's I/O configuration. Higher channel counts reduce test time for multi-port CPO devices.
- Temperature Range – Ensure coverage from -40°C to +85°C as a minimum; extend if your application requires wider limits.
- Ramp Rate Requirements – Faster cycling accelerates reliability testing but requires more sophisticated refrigeration systems.
- Optical Measurement Integration – Verify that the chamber supports in-situ optical monitoring with appropriate feedthroughs and measurement accuracy.
- Compliance with Standards – Confirm that the system can execute test profiles defined in GR-1221-CORE or applicable CPO-specific standards.
- Footprint and Access – Consider laboratory space constraints and the need for fiber management during testing.
The Co-Packaged Optics Thermal Cycle Test Chamber is an essential tool for bringing reliable CPO technology to market. By combining precise temperature control with multi-channel optical measurement capabilities, these specialized systems validate that integrated photonic-electronic packages maintain signal integrity across operating temperature extremes. As CPO adoption accelerates in data centers and AI computing clusters, thermal cycle testing will remain critical to ensuring the field reliability of these advanced optical interconnects.

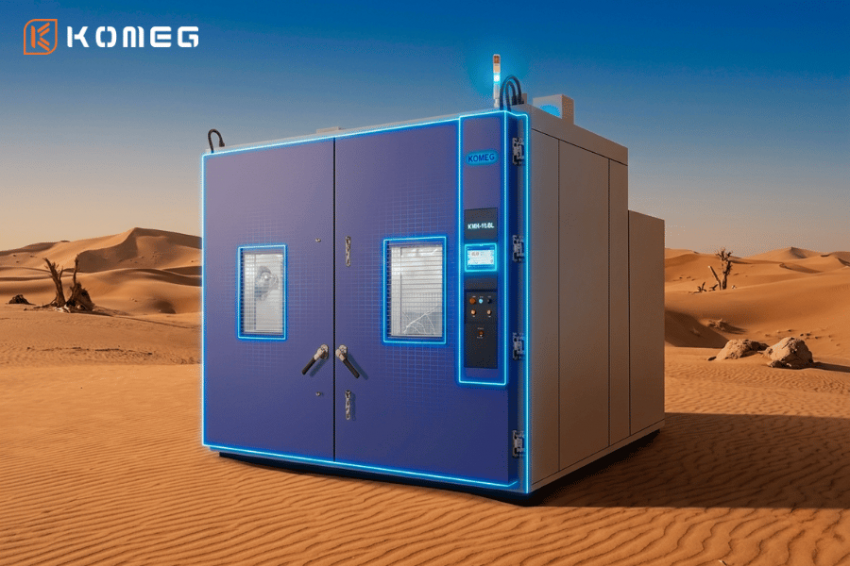

As optical communication technology continues to advance, thermal reliability testing becomes increasingly critical. KOMEG Environmental Stress Screening (ESS) Chamber, with its superior temperature change rate and precise temperature control, is the core equipment for reliability validation of CPO and high-density optical modules. It simulates extreme thermal shocks, quickly exposes early-stage defects, improves product stability, accelerates CPO mass production, and provides reliable protection for high-speed optical interconnects.
