Using a desktop dispensing machine with two-component servo adhesive dispensing technology for heat sinks in electrical appliances is an advanced process solution that significantly improves dispensing accuracy, production consistency, and adhesive utilization.
I. Core Process Flow
The core of this solution is the use of a servo motor-driven dispensing mechanism to replace the traditional pneumatic method, independently and precisely extruding and pushing the two components of adhesive, A and B. Subsequently, the adhesive is thoroughly mixed in a static mixing tube and finally precisely coated onto the heat sink.
1. Equipment Configuration
General desktop dispensing platform configuration:
● XYZ three-axis desktop dispensing machine
● Dual servo pressure dispensing system (one line each for adhesive A and adhesive B)
● Static mixing tube
● Dispensing valve (anti-drip valve recommended)
● Vacuum degassing dispensing tank (optional)
● Heating platform (optional)

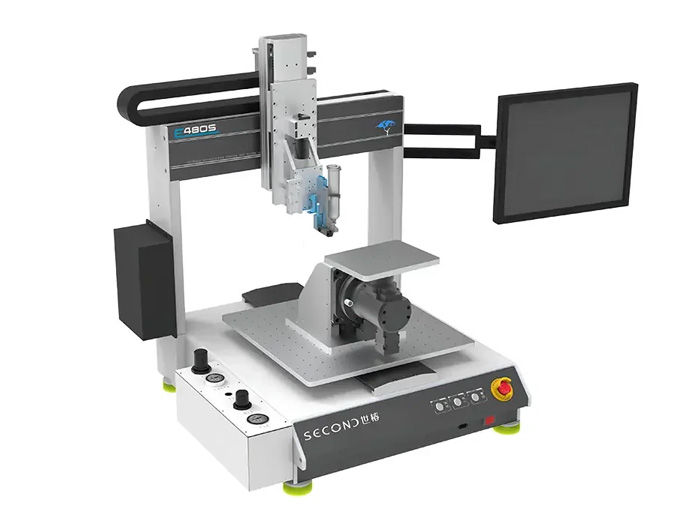

Glue Dispensing Machine SEC-E580
Second Intelligent Desktop Glue dispensing Machine SEC-E580 has achieved the transition from manual gluing to semi-automation. It is the largest desktop dispensing machine. It adopts aviation aluminum alloy casting design and one-piece molding processing, with high strength and stable operation. The X/Y axis transmission assembly is directly installed on the casting. It can reduce the number of parts and improve assembly efficiency. It is small and flexible to ensure precision. alternating gluing function, which can greatly improve work efficiency. It is equipped with CCD visual height measurement, which makes programming more efficient and more accurate.
Compared to traditional manual or semi-automatic methods, this solution offers significant advantages:
●High Precision and Consistency: Servo-controlled dispensing accuracy far surpasses that of traditional pneumatic methods, ensuring consistent product quality.
●High Efficiency: Automated operation can run continuously for 24 hours, and combined with high-speed motion control, it significantly increases output per unit time.
●Adhesive Savings: Precise dispensing control avoids over-coating and waste, reducing material costs.
●Easy Operation: The desktop dispensing machine features intuitive programming, quick line changes, and flexible adaptation to multi-variety production.
Second Intelligent has played an important role in theresearch, development, manufacturing, pre-sales and after-sales services of fluid dispensing robot , potting and coating solutions which range from various types of automatic fluid dispensing, potting, two-component potting machines and coating machines with desktop, free-standing, inline or cobot combined systems, and widely used in global electrical, electronics, home appliances, automobile, telecom, pharmaceutical, automotive electronics, semiconductor, aerospace, LED and more.
