Automobiles are exposed to complex and ever-changing external environments and climatic conditions throughout their use. These factors can lead to performance degradation, component failure, and ultimately affect the overall lifespan of the vehicle. The quality of components directly determines the quality of the finished automobile. Therefore, during the new product development stage or mass production, to ensure product quality, component quality testing must be conducted whenever material or process changes are implemented.

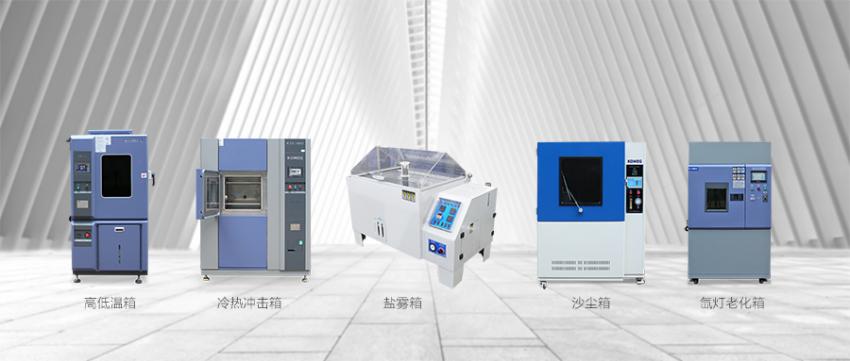

While whole-vehicle reliability testing can evaluate component performance, it may lack sufficient specificity for most parts and is often costly and time-consuming. This necessitates separate bench tests for specific components. Environmental Test Chambers for automotive components is a critical foundational task that spans the entire process, from vehicle R&D and product finalization to production and post-production quality improvement.
With technological advancements, testing equipment is evolving towards intelligence, virtualization, networking, and miniaturization, characterized by high precision and efficiency—a trend that is expected to continue. This article will discuss how to select appropriate environmental test methods and equipment for automotive components based on various environmental conditions and current testing standards.
Light Resistance and Aging Tests
Light resistance and aging tests are rapid and effective simulated environmental testing methods. They can partially replace lengthy outdoor natural exposure tests, assessing a material's aging resistance more quickly than natural environment tests. To accelerate sample aging, these tests use artificial light sources to simulate sunlight.
For example, a xenon lamp aging test chamber simulates sunlight indoors to test the light resistance and weatherability of automotive interior and exterior materials. This equipment enables irradiance control and closed-loop automatic point control, allowing evaluation of a material's light stability, color fastness, and light resistance. It can simultaneously compare damage caused by full-spectrum light and rain, with results assessed according to product design standards.
UV aging tests use fluorescent UV lamps as a light source. By simulating environmental conditions such as light, rain, high temperature, high humidity, condensation, and darkness, they conduct accelerated weathering tests on automotive interior and exterior materials. Ozone aging test chambers are used to study the effect of ozone on rubber. By simulating and intensifying atmospheric ozone conditions, they can quickly identify and test the ozone aging resistance of rubber materials.
Thermal Shock and Temperature/Humidity Tests
Thermal shock test chambers are suitable for performance and reliability testing of automotive non-metallic materials, interior and exterior trim parts, and electrical/electronic products. They feature a wide temperature control range. In application, the temperature and humidity control capabilities comply with the "Basic Environmental Testing Procedures for Electrical and Electronic Products," allowing for environmental tests such as high temperature, low temperature, and damp heat on electronic products or materials.
High-temperature and constant-temperature test chambers are a type of climate simulation chamber used for high-temperature heat aging tests on products like plastics, rubber, and other non-metallic materials, as well as body accessories and electrical/electronic components. These tests help evaluate the high-temperature resistance of automotive parts, such as the heat aging performance of rubber and plastic components, the heat resistance of body accessories and electronic products, and the performance of interior/exterior materials and electrical parts under constant high temperatures. These evaluations are a vital part of quality control for automotive components.
Sealing Performance Test
For components requiring waterproof performance validation, such as lamps and wiring harnesses, a box-type rain test chamber can be used to simulate rainfall environments and test the product's waterproof capabilities. Examples include automotive lamps, wiper weather strips, and low-voltage electrical enclosures.
Flame Retardant Test
Automotive flame retardant testing primarily employs the horizontal burning test method, mainly targeting seat fabrics and interior plastic parts. An interior and exterior combustion tester is used for this purpose. The test material is burned directly under a specified flame source to evaluate its flame-retardant properties.
Sand and Dust Test
To assess the dust resistance of components, sand and dust test chambers simulate wind and sand conditions to test their damaging effects on automotive electrical and electronic parts. The selection of the appropriate chamber depends on factors like chamber size, temperature, humidity, dust concentration, and differential pressure.
Through neutral salt spray tests, copper-accelerated acetic acid salt spray tests, and cyclic corrosion tests, the corrosion resistance of metallic and non-metallic materials used in automobiles can be evaluated. Neutral salt spray testing is often used for the rapid evaluation of anti-corrosion performance of steel protective layers and is now also employed as a method for assessing the corrosion resistance of automotive parts.
However, because it cannot simulate complex atmospheric conditions like dry-wet cycles, results from neutral salt spray tests may differ from the actual failure modes of automotive parts in real-world use. Copper-accelerated acetic acid salt spray tests are primarily used as accelerated corrosion test methods for decorative "copper + nickel + chromium" coatings.
In contrast, cyclic corrosion tests more closely replicate natural outdoor corrosion conditions, providing more accurate evaluations. Factors such as corrosive media, spray, humidity-heat cycles, and drying cycles all interact. Through different combinations and cycles, these tests simulate various corrosion processes of automotive components in atmospheric environments. For coated automotive parts, scribing or stone chipping pre-treatment is often required before testing.
The advantage of using a salt spray (cyclic) corrosion tester lies in its ability to execute repeated cycles, exposing samples to a range of different salt spray corrosion conditions. This effectively tests the corrosion resistance of automotive metal materials. Many leading global automobile manufacturers use this method to validate the corrosion resistance of their components.
Brittleness Test and Material Discoloration Grade Test
A rubber low-temperature brittleness tester is used to test the performance of rubber, non-rigid plastics, and other elastic materials under low-temperature conditions. It determines the embrittlement temperature, such as the highest temperature at which a specimen is damaged upon impact under specified conditions. A standard light box is used to assess the material's discoloration grade.
Voltage Drop Test
Voltage drop testing typically employs a dedicated voltage drop tester. For example, measuring the voltage drop at connectors and leads helps determine connector quality and whether wire breakage occurs during specified bending tests. Instruments like the LX-8830 B-type voltage drop digital tester are used to measure voltage drops at similar junctions, such as on non-reconnectable plugs, pins, and connector leads.
Gas Corrosion Test
Gas corrosion testing for automotive parts falls into two main categories. The first involves high-concentration sulfur dioxide tests, targeting products with strong corrosion resistance, such as various steel alloys, inorganic coatings, and paint coatings. The second category involves low-concentration single or multi-gas corrosion tests, primarily used to detect corrosive gases present in the atmosphere (sulfur dioxide, hydrogen sulfide, nitrogen dioxide, chlorine, etc.) and their corrosive effects on components. This category tests various automotive electronic products, USB plugs, connectors, and more.
Other Related Tests
Environmental testing for automotive components also includes the following items:
-
Material Rockwell Hardness Test: Suitable for carbon steel, alloy steel, cast iron, non-ferrous metals, and engineering plastics.
-
Material Brinell Hardness Test: Suitable for plastics, soft rubber, synthetic rubber, and other non-metallic materials and products.
-
Hardness Measurement: For specific components like automotive brake pipes, steering pipes, and fuel pipes.
-
Hydraulic Pulse Test: Includes immunity tests for voltage interference, electrostatic discharge (ESD), electrical fast transients (EFT)/bursts, and voltage dips.
-
Insulation Performance Test, etc.
Conclusion
An automobile is a complex industrial product composed of thousands of components and is a critical industry related to human life and property safety. With continuous advancements in automotive technology and escalating user expectations, vehicles are incorporating more functions and facing increasingly variable usage environments. These factors directly challenge the safety and operational reliability of the entire vehicle. Reliability testing of automobiles is fundamental to ensuring the safety of life and property and drives the automotive industry towards a new phase of functional integration and systemization.
Against the backdrop of rapid automotive industry development and continuous technological refinement, future trends in testing technology point towards the diversification of environmental test methods. This involves the organic combination of real-world usage environment testing and laboratory-simulated environmental testing. From a global perspective, test environments are complex and diverse, demanding broader coverage from environmental simulation tests. Virtual environment simulation testing, with its vast application potential, will become a key development direction in the future.
